Aluminum CPU Radiator for Laser Printer, Medical Equipment, Hairdressing Equipment

Product Description

CPU RADIATOR
PC, 3D printer (circuit control), laser printer, medical equipment, hairdressing equipment, CNC machine tool computer version, electrical cabinet (water cooling), automation equipment (such as CNC machine), welding machine, wine cabinet, small system Ice machine and small air conditioner.

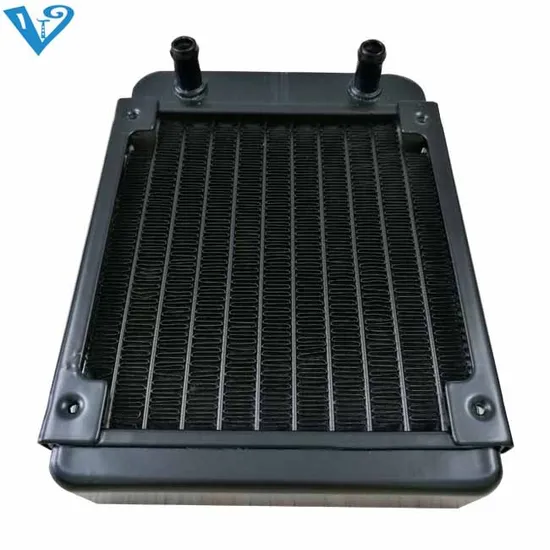

Water Cooled CPU Radiator
Model	Data	Model	Data
CPU-004	Core Dimension: 80*80*16mm	CPU-120A-12	Core Dimension: 117*116*16mm
	Mounting Dimension: 71*71mm		Mounting Dimension: 105*105mm
	Inlet & Outlet Water Pipe: φ8.0mm		Inlet & Outlet Water Pipe: φ8.0mm / φ9.5mm
CPU-001	Core Dimension: 89.5*99*16mm	CPU-240A-12	Core Dimension: 234*116*16mm
	Mounting Dimension: 82.5*82.5mm		Mounting Dimension: 105*105mm
	Inlet & Outlet Water Pipe: G 1/4 Thread		Inlet & Outlet Water Pipe: φ8.0mm
CPU-120B-10	Core Dimension: 111*119*16mm	CPU-240A-18	Core Dimension: 234*118*16mm
	Mounting Dimension: 105*105mm		Mounting Dimension: 105*105mm
	Inlet & Outlet Water Pipe: G 1/4 Thread		Inlet & Outlet Water Pipe: φ10.0mm
CPU-120A-18	Core Dimension:116*119*16mm	CPU-003A-10	Core Dimension: 236*118*16mm
	Mounting Dimension: 105*105mm		Mounting Dimension: 105*105mm
	Inlet & Outlet Water Pipe: φ10.0mm		Inlet & Outlet Water Pipe: G 1 / 4 Thread
CPU-120B-18	Core Dimension: 116*119*16mm	CPU-240B-18	Core Dimension: 234*118*16mm
	Mounting Dimension: 105*105mm		Mounting Dimension: 105*105mm
	Inlet & Outlet Water Pipe: G 1/4 Thread		Inlet & Outlet Water Pipe: G 1 / 4 Thread
CPU-002B-10	Core Dimension: 111*119*16mm	CPU-360A-18	Core Dimension: 354*120*16mm
	Mounting Dimension: 105*105mm		Mounting Dimension: 105*105mm
	Inlet & Outlet Water Pipe: G 1/4 Thread		Inlet & Outlet Water Pipe: φ10.0mm

---
