China Design (1000W-6000W) High Power Fiber Laser Machine for Carbon Stainless Steel Sheet

Product Description

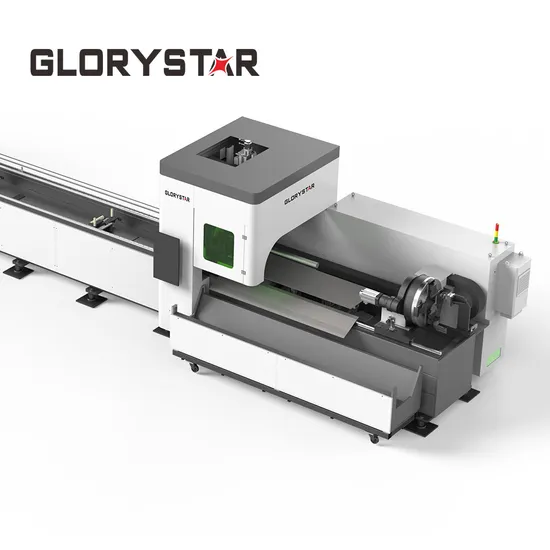

High-speed Professional Tube Laser Cutting Machine(1000W-6000W)
Chuck with the highest standards in the industry
High security -- Large inner hole of chuck,high safety for automatic loading&unloadingStrong stability -- Integral built-in drive structure, gear and rack linkage, greatly improving transmission accuracy and stabilityIntelligent ----self-adaptive pipe diameter, supporting different sizes of pipes, no need to replace the jawsTop precision -- The roller accuracy is 0.005mm, and the clamping accuracy is less than 0.1mmGood dustproof effect -- Built-in gear to avoid cutting dust from enteringLow noise -- Top gear grinding precision in the industry
Small inertia -- Realize high-speed processing and meet the rapid cutting of small pipe fittingsLess tailings -- The material can reach the front chuck as far as possible to realize ultra-short tail cuttingStrong clamping force -- The claw adopts a special friction surface to ensure that the clamping pipe does not slip offHigh rigidity -- Barrel structure design, high supporting rigidity and strong stabilityShaped tube clamping -- With dedicated jaws, it can clamp non-closed pipes, such as channel steel (C-shaped steel), I-beam (H-shaped steel). Optional double-row roller jaws for efficient cutting of very small tubes (10~30 mm)
Fewer - tailing cutting
Supporting two fewer-tailing cutting modes at the same time, which can be selected on the software interface to meet the needs of fewer-tailing cutting of different pipe diametersInsert the main chuck into the front chuck to shorten the distance between the main chuck and the cutting head to shorten the tailingsWhen the workpiece is longer or the pipe size is larger,the front chuck moves to ensure cutting accuracy

Support a variety of profile processing
Support square pipe with a side length of 15-150mm, round pipe with a diameter of 15-210mm, and special-shaped pipe processing such as channel steel (C-shaped steel), I-beam (H-shaped steel), etc. The cutting shape is complete, meeting diversified processing needs,ultra-high cost performance.
Variable diameter wheel support
Variable diameter wheel support,suitable for a wide range of pipe diameters, flexible and convenient, manual adjustment, without changing the support, greatly improving production efficiency.

Efficient automatic unloadingThe two variable diameter wheels at the blanking place automatically rise and fall, supporting the workpiece when rising, and the workpiece slides down automatically when falling,greatly improving productivity.


Independent research and development of intelligent cutting system
1. Dedicated pipe cutting CNC system, supporting breakpoint positioning, continued cutting, corner process setting and other functions2. Automatically measure the deviation of the pipe to improve the cutting accuracy3.With special pipe cutting and nesting software, supporting single-part, multi-part nesting, co-edge, automatic sorting and other functions
Product Parameter

Feature/Model	6012	6022	6032
Laser Power(W)	1000-3000(optional)
Working Area(mm)	6000mm*Φ120mm	6000mm*Φ220mm	6000mm*Φ320mm
Overall Dimensions(mm)	12500*2500*2650	12500*2500*2650	12500*2500*2650

>>> After-sale Service
Installation and debugging
Technicians can be sent to the factory for training (free of service fee for the first time). Customers only need to provide accommodation for engineers.
Training
Free of charge for training within warranty. But customers need to take charge of the cost for accommodation, air tickets, visa fee.
24/7 online service
All our laser equipment is provided with 12 months warranty. Glorystar Laser offers free maintenance or replacement service if something is wrong with the equipment under warranty. If it is out of warranty,Glorystar Laser will send engineers to your factory as soon as possible and only charge the cost of parts.
Accessories supply
IPG laser source is 2 years. Other parts is one year except for optical and consumable parts. Prolong serve is always available for option. Free of charge for fixing and changing parts within warranty. Only changing parts , the freight should be charged by customers.
Remote diagnosis
Glorystar Laser can check the running status of the customer's laser cutter through our remote maintenance system. Our technicians can perform troubleshooting via remote access instead of on-site diagnosis and maintenance, saving you a lot of time.
Additionally, Glorystar Laser will establish a special user profile for all customers who have purchased equipment from us to record your usage, maintenance records and other information. This will help us to learn about customer information more quickly and thus provide necessary upgrades according to customer feedback
ABOUT GLORYSTAR LASER
Glorystar Laser Group has been deeply engaged in the manufacturing of laser intelligent equipment for 11 years. It is headquartered in Dongcheng District, Dongguan and has two wholly-owned subsidiaries.It is a national-level high-tech enterprise focusing on laser application solutions such as laser cutting, tube cutting, precision cutting, laser welding, laser marking, CNC bending, and automation equipment.
Glorystar Laser has established branches and service outlets in 30% of the countries and regions around the world to promote the process of global intelligence and has more than 200 patents and certificates. Glorystar Laser adheres to the quality route and forms 139 production and inspection procedures higher than the industry standard. With the mission of "Laser technology makes a better world", its high-quality products and after-sales service have won high praise from customers.

---
