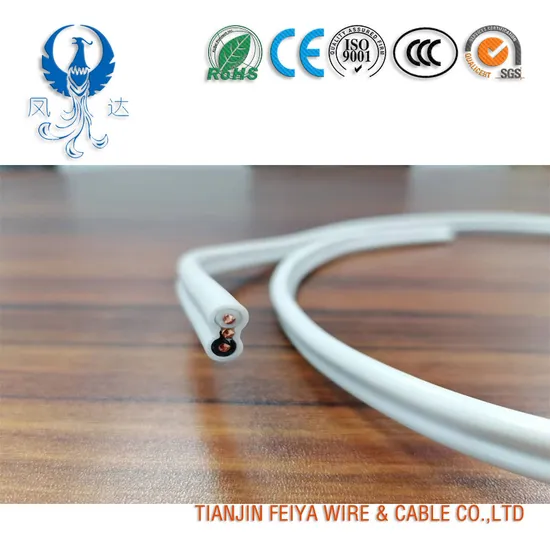

CSA Approved Canadian Electrical Cable Flat Copper 14/2 12/2 Nmd90 Wire for House Building

Product Description

Combination of production and trade --More professional service
---More favourable price
----More consistent quality
-----And quicker delivery
BUILDING WIRE SPECIFICATIONS NMD90
• COPPER CONDUCTORS
• 300 VOLTS / -25ºC MIN, 90ºC MAX
• PVC / NYLON INSULATION
• PVC JACKET
APPLICATIONS
NMD90 cables may be used for both exposed
work in dry locations or concealed work in dry or damp locations.
The maximum allowable conductor temperature is 90°C. The minimum
recommended installation temperature is -25°C for two-conductor cables
and -10°C for three-conductor cables (with suitable handling procedures).
Material should be properly stored above 0°C for 24 hours prior to installation.
The maximum voltage rating for all intended applications is 300 volts. Consult
the Canadian Electrical Code1 for further information related to applications.
CONSTRUCTION

PCS Catalogue Number	Conductor			Bonding Wire AWG Size	Insulation (inches)	Jacket (inches)	Ampacity (30ºCAmbient) (amps)	Nominal O.D. (inches)	Total Weight (lbs/km)
	NO.	AWG SIZE	STRANDING
NMD 14-02-XX	2	14	Solid	14	0.030	0.030	15	19*38	213
NMD 12-02-XX	2	12	Solid	14	0.030	0.030	20	21*41	272
NMD 10-02-XX	2	10	Solid	12	0.030	0.030	30	23*47	394
NMD 14-03-XX	3	14	Solid	14	0.030	0.030	15	340	272
NMD 12-03-XX	3	12	Solid	14	0.030	0.030	20	370	360
NMD 10-03-XX	3	10	Solid	12	0.030	0.030	30	430	521
NMD 08-03-XX	3	8	7 Strand	10	0.045	0.045	40	610	922
NMD 06-03-XX	3	6	7 Strand	8	0.045	0.045	55	690	1329
NMD 04-03-XX	3	4	7 Strand	8	0.045	0.060	70	820	1952
NMD 03-03-XX	3	3	7 Strand	6	0.045	0.060	95	920	2808
NMD 02-03-XX	3	2	7 Strand	6	0.045	0.060	95	990	3019

ABOUT OUR FACTORY
Tianjin Feiya wire & Cable CO., LTD. is founded in 1998, located in Tianjin, china. The company covers an area of 50 thousand square meters, registered fund of 110 million USD has more than 500 staffs, and more than 300 Agents and distributors. We are a professional manufacture in China. From established, we insist Technical and Concept innovation, Strengthen inner management, and keep pace with time. We have passed ISO9001:2000 and ISO140001:2004. All products conform to CE, GB, IEC, BS, ASTM, VDE JB and UL standards. Besides, we have the ability to design and produce various wires and cables, and customize them for you according to the special requirements of customers (providing OEM & ODM services). Over the past decades, we have become one of the main suppliers of China national power grid, China National Petroleum Gas Group and China Railway Construction Group. The products have been sold to many countries and regions in the world, such as USA, New Zealand, Russia, Algeria, Bahrain,Bangladesh,Brazil, Chile, Costa Rica and Cyprus, Indonesia, Iran, India, Jordan,Malaysia, Oman,Pakistan, Philippines, Singapore, Sri Lanka, Tanzania, Yemen,Vietnam, Mongolia. Our Principles: 1) Quality first, customer first, safety first 2) Better service, faster delivery 3) Equal and mutual benefit 4) Honesty and professional Our service: 1. Swift and professional response 2. Patient and trusty 3. Severe quality control system 4. On-time delivery Our Mission: Supply quality products with competitive price & excellent service.
OUR CERTIFICATION
OUR EXHIBITION

Packing
FAQ Q: Can you make the product as per client's requirement? A: Yes, we can make it with your exact requirement. Q: What are your payment terms? A: T/T (50%-90% as despot, the rest will be paid before delivery), L/C at sight Q: Can I visit your factory before the order? A: Yes, welcome to our factory to check the quality. Q: Where is your nearest loading port? A:Tianjin in China Q: Do you accept small quantity order? A: Of course we do. Q: Can we choose different material? A: Yes, the material can be chose according to your requirement. Q: And what is your shipment and delivery time? A: By sea. Normally 7 to 14 Days for delivery, according to your order quantity. Q: And what's your packing? A: carton cases inside, export wooden cases outside.
