Product Details
Product Description
Product Description
Product Description

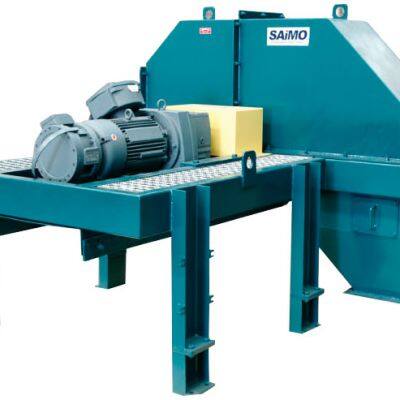

Saimo's Model S70 Sweep Type Sampling Machine is specially designed to obtain a representative bulk sample directly from material on a conveyor belt. It is comprised of a sweep type sampling head or cutter, a drive device, position detector and includes a dustproof steel housing. The stainless steel fabricated sampling head or cutter is equipped with a counter weight thus ensuring accurate and reliable performance. Driven by a geared motor, the rotary cutter head rotates a complete cycle allowing a full section of material on the moving belt to be obtained. The sample is then fed into the sampling unit via a chute for downstream crushing and division.
Features
Compact design is suited for low headroom installations.
Directly mounts to belt conveyors. No transfer point is required, allowing convenient installation at low cost.
Rectangular structural sections are utilized thereby ensuring adequate rigidity.
Direct drive design ensures positive stopping whether the belt is empty or loaded.
Skirting seals on sampler prevent material spillage.
Non-contacting proximity switches for start-stop control.
Replaceable soft steel brushes and guide plates on all sides assure full section of material is sampled on the belt without damaging the belt.
Counterweighted sample cutter eliminates high eccentric loading.
Saimo Technology Co., Ltd
2# Luoshan Road, Xuzhou Economic Zone,
Jiangsu province, P.R of China
Mobile: 18061139050
wechat:396914510
Website：
Email: zouli@saimogroup.com
>>
