Artificial Intelligence Technology Temperature Controll 1600 Degree High Temperature Oven Muffle Furnace

Product Description

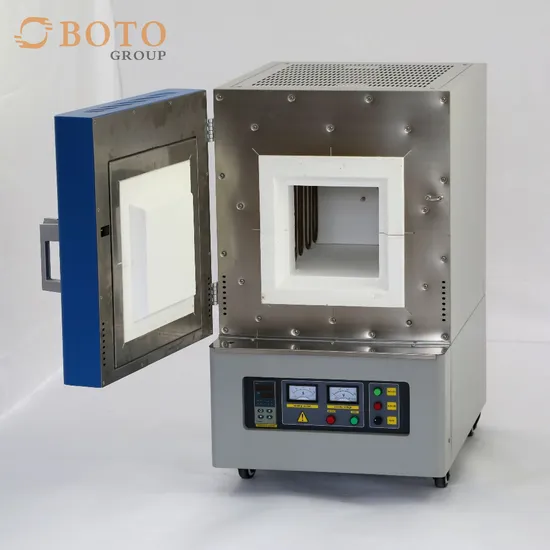

Lab muffle furnace
The furnace chamber is adopted the 1700 type imported polycrystalline alumina fiber. Equipped with intelligent cooling System between the dual shell, when the surface temperature reach to 50ºC, the cooling fun will be start working automatically, so it can ensure the surface temperature is low; Using constant current soft-start control, to extend the life of heating elements.
Main uses:
Universities, research institutes, industrial and mining enterprises to do the powder sintering , sintering of ceramics, high temperature experiments, material handling, quality inspection purposes.
Features
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Built-in computer interface.
• Long life type K thermocouple.
• CE compliant
Safety
• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
Characteristic
11) high temperature BOX series muffle furnace, the control system is an international leading, with safe and reliable, simple operation, convenient maintenance.
2) Use 708P type temperature controller (Professional PID programmable control) for automatic temperature control with high temperature control precision (±1ºC). the temperature range is wide, and high uniformity of furnace temperature.
3) Furnace chamber adopts the vacuum suction molding alumina fiber, has the characteristics of energy saving, light volume, high cooling speed, the temperature field balancing, good thermal shock resistance ability.
4) Furnace body have the internal and external double-layer structure, heat insulation effect is good, the outer furnace wall temperature is low. Fast heating and heat preservation performance is good, the energy saving effect is obvious.
5) Equipped with rapid air cooling system. Oven door and oven door frame to cool the air cooling design, guarantee the oven door use for a long time not out of shape.
6) The stove top can install vent, furnace and control system integration design, compact and beautiful.
Product parameter:

Model	BTLY-1700C		BTLY-1700C
Power supply	AC220V 50/60HZ	AC220V 50/60HZ	AC380V 50/60HZ
Furnace chamber (D x W x H)	160*150*150mm	300*250*200mm	400*300*300mm (Customizable)
Overall size	620*620*900mm	620*680*1050mm	640*760*1600mm
Rated power	4KW	6KW	14KW
Weight	130kg	150kg	400kg
Furnace chamber	1700 type imported alumina polycrystalline fibers furnace chamber, scientific design and with durable, good insulation properties.
Heating elements	High quality silicon molybdenum rod
Thermocouple	B-type double platinum rhodium thermocouple
Temperature control mode	The temperature control system uses artificial intelligence technology, with PID control, self - tuning function, 50 segment heating and cooling program.
Continuous working temperature	≤1600ºC
Maximum temperature	1650ºC
Recommended heating rate	10ºC/min
Temperature control accuracy	±1ºC
Standard accessories	Door brick 1 piece Crucible tongs 1 piece
Optional accessories	Furnace hobs, a variety of corundum crucible, oven glove, computer control software and paperless recorder, etc.
