Cut to Length Machine for Pipe Mill Coil Cutting Machine

Product Description

Cut to Length Machine for Pipe Mill Coil Cutting Machine
The cut to length machine is also called cross-cutting line, cut-to-length line or cut-to-length production line. Mainly used for cutting tinplate coils, galvanized coils, silicon steel plates, cold rolled coils, stainless steel coils, aluminum coils and stacking and packaging according to the required product length. The cut to length machine is the pre-process of coil sheets used in transformers, home appliances, automobiles, building materials, packaging and other industries.
Model:

No.	Model	Thickness (mm)	Width (mm)	Speed (m/min)	Capacity (kw)	Area (M2)
1	HNHJ-01	0.2 - 1.0	500 - 1250	30	100	12×30
2	HNHJ-02	0.5 - 2	900 - 1250	30	150	12×30
3	HNHJ-04	1.5 - 4	1000 - 1500	25	175	12×30
4	HNHJ-06	2 - 6	1000 - 1550	25	200	12×30
5	HNHJ-10	4 - 10	1000 - 1550	20	400	12×40
6	HNHJ-13	4 - 13	1000 - 1550	20	450	12×40
7	HNHJ-14	5 - 14	1000 - 1700	15	500	16×50
8	HNHJ-16	6 - 16	1200 - 2150	15	600	16×50
9	HNHJ-20	8 - 20	1200 - 2150	10	700	16×50
10	HNHJ-25	10 - 25	1200 - 2150	10	900	16×50

Process:
Coil Loading - Uncoiling - Pinching and Rough Leveling - Sides Cutting - Powerful Precise Leveling 1 - Powerful Precise Leveling 2 - Cut to Length - Palletizing - Collection
Packing & Shipping
1. We use steel wire and wooden frame to fix the pipe mill.
2. In addition, used shockproof film to protect the main motors.
3. We use containers for shipping.
4. Generally speaking, we start at Tianjin sea port, but we also can start at other port according to customers need.

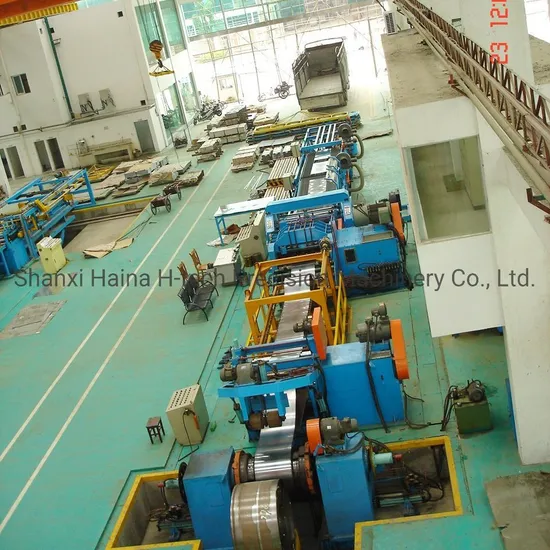

Our Factory
Our Customer
Integrated Services
1. Provide customers with a reasonable investment plan, filter the appropriate models recommended to customers.
2. Free equipment drawings, customer plant equipment planning drawings.
3. Provide the base map required for installation free of charge.
4. Provide equipment installation and commissioning until the buyer operates normally.
5. Provide professional technical training, as soon as possible to allow the buyer's operator to master the operation and use of the equipment.
6. Provide and coordinate auxiliary equipment, accessories, and consumables.
7. The warranty period is one year, except man-damage. If you have any question in operation in operating the machines, you can call us or send emails, we will solve the problem for you asap.

---
