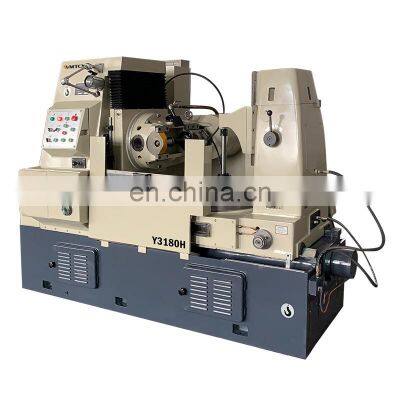

Y3180H Standard Precision Hobbing Machine with CE Standard

Product Description

Product Description
Properties and pecularities1. For standard precision hobbing machine, we take regulation from “GB8064-87” to test our machines cefore delivered from factory. Under normal conditions, the precision come up to “GB10095-88” 7th degree precision according to2. This machine applies to bulk or small batch of hobbing process against roller gear or worm wheel3. According to buyer's requirement, there is tangential advancing multi-heads worm wheel avaible for optionNameY3180HMax. diameter of workpieceWith smaller column 550mmWithout smaller column 800mmMax. processing module10mmMax. processing width300mmMin. number of teeth processed8Max. vertical travel of tool seat350mmMax. returning angle of tool seat240°Distance from axis of hob to operating platform235-585mmTaper of principal spindleMT5Allowed for install hobMax.diameter 180mmMin. length 180mmMax. axis movement of hobbing cutter50mmDia. of hob mandrelφ22、φ27、φ32、φ40mmDistance from axis of hob to axis of operating platform50-550mmSwift movement distance of operating platform hydraulic unit50mmHole diameter of operating platform80mmHole taper of spindle seat of workpieceMT5Dia. of operating platform650mmPrincipal spindle REV and range of REV8step 40-200r/minSwift movement speed of tool seat≤540mm/minSwift movement speed of operating platform≤500mm/minDistance from operating platform surface to cutter racket bearing end surface400-600mmAxis feeding volume steps and range of feeding volume12step 0.4-4mm/rPrincipal motor power and synchronous rev5.5kw 1500r/minPower of axis swift motor and synchronous rev1.1kw 1500r/minPower of swift motor of operating platform and synchronous rev0.55kw 1500r/minPower of hydraulic pump and synchronous rev1.1kw 910r/minApproximate mass of machine5500kgOuter size of machine(L×W×H）2752×1490×1870mm
Company Profile
Jingjiang Fuji Technology Co., Ltd.
Our company offers variety of products which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
