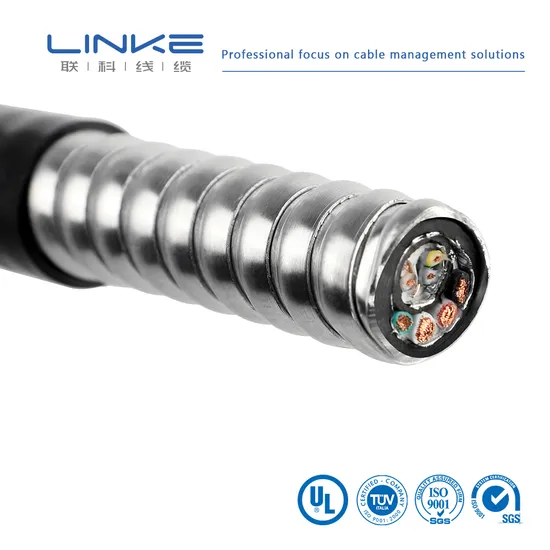

Low Voltage Insulated PVC Sheathed Flexible Armoured Cable

Product Description

Low Voltage XLPE Insulated PVC Sheathed Flexible Armoured Cable Detailed PhotosXLPE insulated power cable has a number of advantages over paper insulated and PVC insulated cable. XLPE cable has high electric strength, mechanical strength, high-ageing resisting, environmental stress resisting aiti-chemical, corrosion, and simple construction, using convenient and higher operating of long term temperature. It can be laid with no drop restriction. Various of flame-retardant XLPE cable can be manufactured with three technology. The flame-retardant cable covers all kinds of low-smoke, halogen free, and non-smoke non-halogenated and three classes of A,B,C.
Product DescriptionCharacterization
Voltage Rating : (V) 600
Temperature Rating :(ºC) 80
Environmental: RoHS
Performance
Electrical Properties: Requirement 20ºC
Conductor-Resistance (Ω/km) 6AWG ≤1.403
18AWG ≤23.2
Insulation resistance 0.75MΩ.km
Spark test(KV): 6.0
Voltage-Withstand Test : AC 2000V
Company ProfileWire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China. In the past over 10 years, Linke Cable has been focusing on R&D, production and marketing of wire and cable. Linke provide various cables&custom cable solutions for all over the world. We are specialized in EV charging cable, medical cable, silicone cable, spring cable, braided cable, towlobe cable, UL wire, automotive cable, etc.
At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer approach to develop better cables for customers and improve the quality of one's life.
CertificationsWe past UL1007,UL1185,UL1672,UL10070,UL10483,UL1015,UL1569,UL10012,UL10269(Single conductor,thermoplastic insulation)
UL2095,UL2129,UL2468,UL2586,UL2725,UL20233,UL20280,UL20963,UL2103,UL2463,UL2517,UL2587,UL2835,UL20276,UL20549,UL21198,2104,UL2464,UL2576,UL2661,UL2919,UL20279,UL20886,UL21664
ISO9001 and ISO13485,TS16949
CNR- Appliance Wiring Material,
Extruded PVC Insulated Single,rated 105ºC,1000V,ClassI,GroupA,B,or AB, FT1 and/or FT2.
Extruded PVC Non-integral Jacketed Cable, rated 105"C, 1000V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2.
Extruded TPU Non-integral Jacketed Cable, rated 80"C, 300V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2
LINKE UL CERTIFICATION

Single-conductor, thermoplastic insulation
1007	1330	1333	1591	1723	10064	10369
1015	1331	1569	1592	1901	10070	10483
1185	1332	1577	1672	10012	10269
Multiple-conductor, thermoplastic insulation
2095	2129	2468	2586	2725	20233	20280	20963
2103	2463	2517	2587	2835	20276	20549	21198
2104	2464	2576	2661	2919	20279	20886	21664
Single-conductor, thermoset insulation
3075	3173	3320	3386	3530	3689	30005
3123	3212	3321	3398	3577	3702
3132	3266	3331	3512	3644	3817
3135	3271	3385	3529	3674	3886

FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.
Welcome to visit us. We'll pick you up in Shenzhen.
2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.
4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company

---
