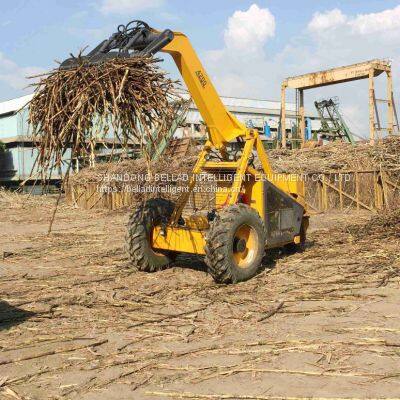

BL5200 three wheel logger in stock with 100HP Cummins engine

Product Description

Product Description
BL5200 three wheel logger in stock with 100HP Cummins engine" target="_blank" style="margin: 0px; padding: 0px; text-decoration-line: none; color: rgb(51, 51, 51); max-width: 775px; height: 17px; display: inline-block; text-overflow: ellipsis; overflow: hidden; font-family: Arial; background-color: rgb(255, 255, 255);">three wheel logger in stock with 100HP Cummins engine

Car weight	5200kg
Grab weight	1000kg
engine model	Cummins 4BTA3.9-C125/ Yuchai 4102 turbo
Engine power	74kw/76kw
Walking speed	≤25km/h
Rated Revolution	2000r/min
Hydraulic system pressure	20MPa
Hydraulic system displacement	63ML/r
Maximum catch height	5400mm
Maximum unloading height	5000mm
Min Rotary Radius	3600mm
Total length	7250mm
Total width	2150mm
Cab height	2780mm
Between tire	1790mm
Ground clearance	400mm
Max Grab Size	1200mm
Min Hold Circle Size	530mm

PRODUCT PERFORMANCE CHARACTERISTICS
1. Rotate 360° in situ, and the working space is small.
2. Strong climbing ability, suitable for different site operations.
3. Workbench, water temperature, oil temperature, current, working time, clear at a glance.
4. Adopt famous brand hydraulic parts, Cummins engine, long service life, strong power and fast working speed.
5. While walking, pile up, the gripper can meet the front grip and side loading, which greatly improves the work efficiency.
6. It adopts hydraulic walking, and each operation action is completed with hands and feet, which improves work efficiency, and each machine can replace a large amount of human work intensity.

---
