TUV Certificate 30years Expected Service Life 6mm Solar Cable for PV System

Product Description

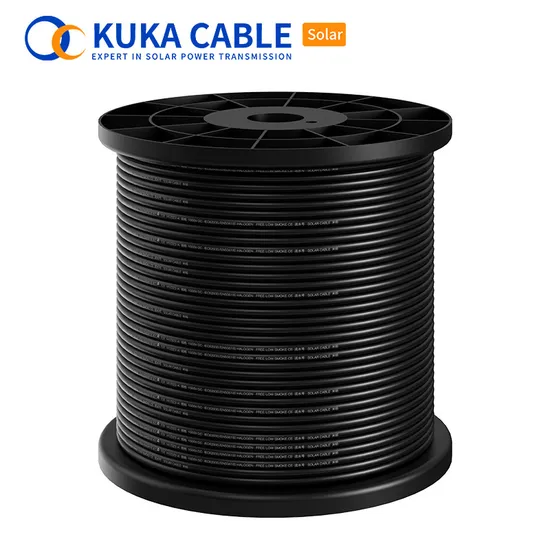

Solar Cable H1Z2Z2-K
Solar Cables are high-quality electrical cables specifically designed for use in solar power systems. They are made of materials that can withstand extreme temperatures, UV radiation, and moisture. Solar Cables ensure safe and efficient transmission of electricity throughout the system, and come in various sizes and lengths to accommodate different system configurations.
Solar Cables are certified to meet international safety standards, such as TUV and UL, to ensure their quality and reliability. They have a long service life, often lasting up to 25 years or more, and are designed to minimize power losses, maximizing overall system efficiency. Commonly used specifications include 4mm², 6mm², and 10mm² wire sizes. Company Profile
Product Description
Product Parameters

MECHANICAL FEATURE
Minimum Bending Radius	Fixed:4xOD;Flexing:5xOD
Temperature range	-40ºC+90ºC,Max.temp.at conductor +120ºC
Weather/UV Resistance	EN 50289-4-17
Ozone Resistance	EN 50396:2005
Halogen Free	EN 50525:1
Flame-Resistance test	EN 60332-1-2
Water Resistance	EN 50525-2-21
Short circuit temperature	250ºC for 5s
Anticipated service life	30 years
Tensile Strength Before Aging	≥8N/mm2
Elogation Strength Before Aging	≥125%

Product Catalog & Factory

Certifications

FAQ
Q1:I didn't find my needed model in this page. A1:We are factory. Catalog will emailed to you asap you contact us. Also, we supply customization service. So, contact us!
Q2:How long is your delivery time?
A2:Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q3:Can I see the sample first before I place the real order ?
A3:Of course. We can offer little sample for testing quality and market.
Q4:How about MOQ ?
A4:Our company has MOQ requirement, but we also accept small quantity.
Q5:What is your terms of payment ?
A5:Payment<=1000USD, 100% in advance.
Payment>=1000USD, 30% T/T in advance ,balance before shippment.

---
