Mr-U2 Polishing Drill Bit Avoid Error Caused of Drilling in Precision Lathe Machine Machinery Plant

Product Description

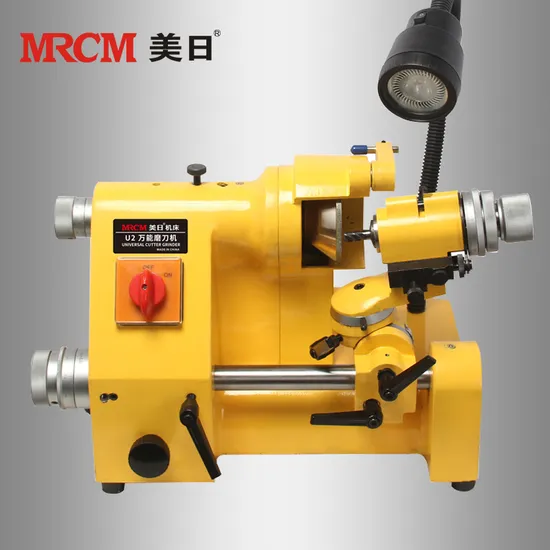

MRCM Universal Cutter Grinder MR-U2
1. For grinding HSS and carbide engraving cutter as well as single lip or multiple lip cutters of various shapes
such as radiuses cutters or negative taper angle of cutters.
2. The universal index head is provided at 24 positions so that any particular angle of shape can be obtained,
free 360 or 100 rotation is allowed for grinding End Mills,Twist Drill,Lathe Tools, only replace the attachment to
the index head without any complex setup.
Specification:

Model	MR-U2
Max. collet capacity	Φ18 mm
Max. grinding dia.	Φ18 mm
Longitudinal traver of index head carrier	140mm
Longitudinal adjustment trave of index head carrier	180mm
Spindle and wheel longltudinal adjustment travel	600mm
Taper angle range	0~ 180 (degree)
Relief angle range	0~ 45 (degree)
Negative angle range	0~ 25 (degree)
Motor	1/3HP 220V/380V 50HZ
Grinding spindle	5300rpm
Grinding wheel	Φ100×50×Φ20
Dimension	55×46×49cm
Weight	55KG
Standard Equipment	3 collets: Φ4, Φ 6, Φ 8
	Belt×1
	Diamond pen×1
	Twist drill grinding attachment×1
	End mill grinding attachment×1
	Lathe tools grinding attachment×1
Option Equipment	Eleven piece collets: Φ 3, Φ 4, Φ 5, Φ 6, Φ 8, Φ 9, Φ 10, Φ 12, Φ 14, Φ 16, Φ 18

Details:

MR-U2
UNIVERSAL CUTTER GRINDER
It is specially designed for sharpening various diameters,shapes,angles of carving knives,round knives,
straight shank cutter,end mill,drill,lathe tool,engraving cutter and so on;
Standard accessories:
Focus on precision and detail
The equipment adopts one type pig iron casting process to ensure that the center of gravity is stable and not tremble.
FAQ
1.What is your advance?
A:(1)We have ourselves factory. We accept the order if you want to customize products or design the product.
(2)Professional website platform and one-to-one online service.
(3)Various products in low MOQ and competitive prices.
(4)We have a strong R&D team and now we have 52 patents products.
(5)80% exporting products have been sold to Europe,America and Japan, high quality.
2. What's the minimum order quantity?
A: One set is acceptable
3. How about the payment Term?
A: We accept T/T,Western Union,LC
4. What's your port?
A: Ningbo/Shanghai.
5. Can we use our own shipping agent?
A: Yes,you can. we had cooperated with many forwarders.If you need,We can recommend some forwarders to you
and you can compare the price and the service.
6. Can we use our own LOGO or design for sticker?
A: Yes,you can contact with the salesman. And sent us more details about the LOGO or sticker.
7. How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according
to quantity.
8. Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for cheaper price but do not pay the cost of freight.

---
