Saddle Move Type Hyraulic Automatic 4080 Surface Grinding Machine M7140A 400X800

Product Description

Surface Grinder M7140A-1
Pls be free to ask for more information from me

Description			M7140A-1	M7140A-2	M7140A-3
G rinding Capacity: LXBXH		mm	:800X400X405	1000X400X405	1250X400X405
Longitudinal table travel		mm	:820	1020	1270
Cross table travel		mm	:440	:440	:440
Max. Distance from the spindle centre to the worktable surface		mm	:580	:580	:580
S afety load of bench ( in max )		kg	:400	:400	:400
T able size		mm	:800X400	1000X400	1250X400
T-slot		mmXn	:18X3	:18X3	:18X3
B ench speed		m/min	:0-26	:0-26	:0-26
Cross auto feed		mm	:0.5-20	:0.5-20	:0.5-20
C ross handwheel	Per graduation	mm	:0.0 2	:0.0 2	0.02
	per revolution	mm	:4	:4	4
Grinding W heel size(od x b x id)		mm	:350x32x127	:350x32x127	:350x32x127
S pindle speed		R/min	:1450	:1450	:1450
V ertical fine adjustment revolution		mm	:0.0 4	:0.0 4	:0.0 4
V ertical per fine adjustment graduation		mm	:0.0 01	:0.0 01	:0.0 01
S pindle moter		kw	:5.5 (Y132S-4 B5)	:5.5 (Y132S-4 B5)	:5.5 (Y132S-4 B5)
O verall dimensions: L x b x h		mm	:2260X1790X1917	2660X1790X1917	3100X1790X1917
Packing size(LXWXH)		mm	2400X1990X2180	2800X1990X2180	3300X1990X2180
G/N weight		T	4.2 / 3.8	4.8 / 4.4	5.4 / 5.0

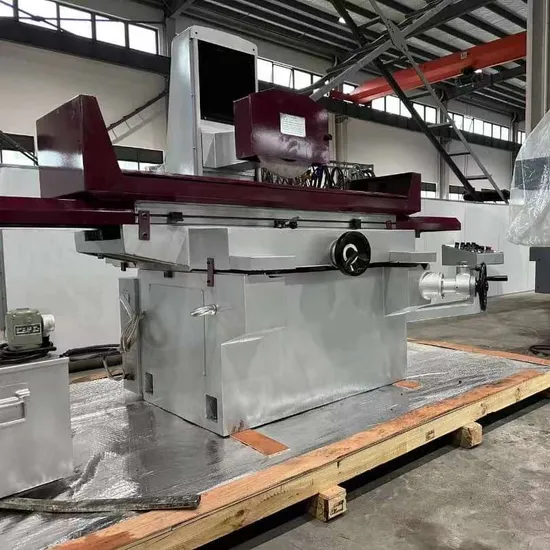

DETAIL PHOTOS

PLS BE FREE TO CONTACT ME FOR MORE INFORMATION
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as surface grinding machine, CNC surface grinder ,CNC Milling Machine ,Vertical Machining Center ,Drilling Machine ,gantry milling machine , CNC gantry milling machine, CNC gantry grinding machine so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in NO 370 Changjiang North Road, NANTONG ,JIANGSU ,CHINA. If you have interest to visit our factory, pls inform
me ahead, i will arrange and company you your visit period.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
