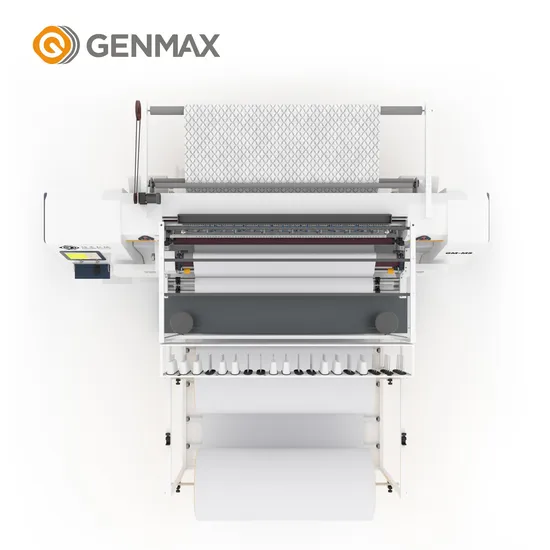

Computerized Chain Stitch Looper Type Quilting Machine

Product Description

If you need more detailed information and other models, please email us. We will promptly reply to you.
Automatic lubrication system enables labor saving and long life of the machine.
Japanese famous brand bearings and precise casting spare parts are used on the machine, which ensures long life of the machine.
Automatic stop when up Or bottom thread is broken, and both up and down safety infrared protection.
Delta VFD (variable-frequency driver) drives main shaft (Z shaft), Panasoni servo driver& motor control the saddle (×shaft) and roiler (Y shaft).
Both continuous patterns and Tack &jump patterns (360°and180° ) are available.
Controlling system based on Windows, CAD drawing.
Automatic stop when pre-set processing length is finished, which is saving labor and easy operation.
Automatic detection of machine running condition.
Optional: 0.5 inch needle distance, capable of making more patterns. Parameter

Model	M5	Quilting Width	2450mm
Needle bar distance	50.8, 76.2, 27(5")/76.2, 76.2, 152.4(6")	Needle distance	25.4mm
X-axis movement displacement	304.8mm	Quilting thickness	<80mm
Stitch Length	3-7mm	Capacity	60-300(m/hour)
Needle Type	24/180 23/160 22/140 21/130	Main shaft speed	500-1200(rpm)
Voltage	380V/50Hz 220V/60Hz, 3-Phase	Power	7Kw
Dimension(L xW x H)	5400 x 1650 x 2050mm	Weight	4800Kg

---
