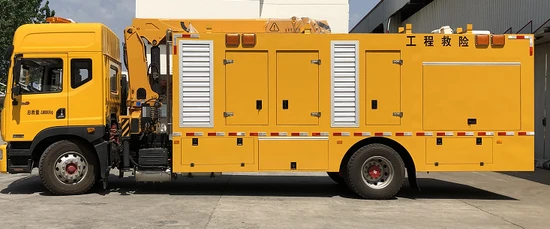

Heavy-Duty High-Flow Drainage Rescue Vehicle for Emergency Flood Control and Response

Product Description

Product Description
Highway Fence Collision Barrier Repair Vehicle for Guardrail Maintenance Highroad Guardrail Repair Vehicle
Vehicle parameters: Jacket formModel 1
Large Flow Drainage (Child and Mother) Emergency Vehicle
Overall Dimensions (mm)
:
11000 × 2550 × 3950
Chassis Type
:
ZZ5256XXYN504GF1
Driving Form
:
6 × 4
Wheelbase (mm)
:
5800 + 1350
Total Mass (kg)
:
2487
Service Weight (kg)
:
1-Axis
6870
II, III Axis (and Double Axis)
:
18000
Full Load Total Weight (kg)
:
25000
Full Load Weight (kg)
:
1-Axis
7000
II, III Axis (and Double Axis)
:
18000
Wheel Track
:
1-Axis
2035
II, III Axis (and Double Axis)
:
1850/1850
Tyre
:
1-Axis
295/80R22.5
Specification
II, III Axis (and Double Axis)
:
295/80R22.5
Front Overhang (mm)
:
1450
Rear Overhang (mm)
:
2400
Approach Angle (°)
:
16
Departure Angle (°)
:
10
Minimum Ground Clearance (Full Load) (mm)
:
> 230
Minimum Turning Diameter (m)
:
≤23.5
Gradient (%)
:
> 30
Maximum Speed (km/h)
:
89
Cab capacity (persons)
:
2
Technical features:
Equipped with a state-of-the-art Intelligent PLC control system, featuring a sleek thin-film button switch. This centralized control system is complemented by a user-friendly Chinese display interface, allowing seamless detection and display of the generator set's operation;
A robust stainless steel wire filter cover is meticulously installed on the pump body, providing ample flow area to efficiently prevent debris from entering and clogging the pump;
Positioned strategically between the front of the truck and the cab is a powerful vehicle lifting boom. Boasting a maximum lifting capacity of 5T and a soaring lifting height of 8.9m, this hydraulic-controlled boom ensures effortless lifting of the pump and other substantial objects within the carriage.
