Mineal Mineral Ore Processing Machine-Crushing Machine, Crusher, Grinding Mill

Product Description

Features
The machine is composed by feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is with stable and reliable working condition.
Moreover, according to different materials and discharging methods, there are dry ball mills and wet ball mills for choice.
Descriptions
The ball mill is a key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc, and the ball mill can grind various ores and other materials with dry type and wet type. There are two kinds of ball mill, grate type and overfall type due to different ways of discharging material.

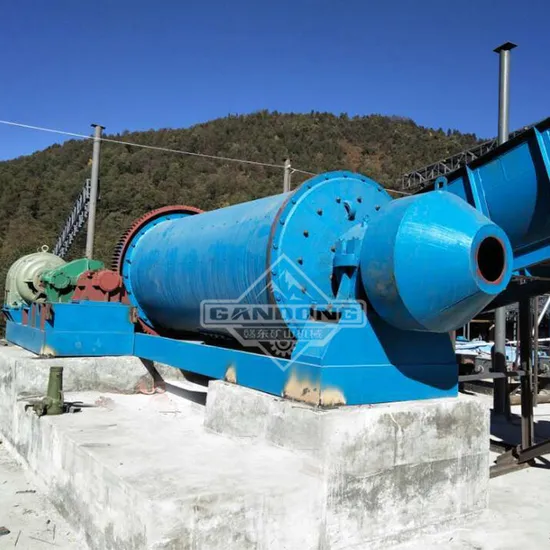

The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Model	Shell rotation speed (r/min)	Ball load (t)	Feeding size (mm)	Discharging size (mm)	Capacity (t/h)	Motor power (kw)	Weight (t)
Ø900*1800	36-38	1.5	<=20	0.075-0.89	0.65-2	18.5	4.6
Ø900*3000	36	2.7	<=20	0.075-0.89	1.1-3.5	22	5.6
Ø1200*2400	36	3	<=25	0.075-0.6	1.5-4.8	30	12
Ø1200*3000	36	3.5	<=25	0.074-0.4	1.6-5	37	12.8
Ø1200*4500	32.4	5	<=25	0.074-0.4	1.6-5.8	55	13.8
Ø1500*3000	29.7	7.5	<=25	0.074-0.4	2-5	75	15.6
Ø1500*4500	27	11	<=25	0.074-0.4	3-6	110	21
Ø1500*5700	28	12	<=25	0.074-0.4	3.5-6	130	24.7
Ø1830*3000	25.4	11	<=25	0.074-0.4	4-10	130	28
Ø1830*4500	25.4	15	<=25	0.074-0.4	4.5-12	155	32
Ø1830*6400	24.1	21	<=25	0.074-0.4	6.5-15	210	34
Ø1830*7000	24.1	23	<=25	0.074-0.4	7.5-17	245	36
Ø2100*3000	23.7	15	<=25	0.074-0.4	6.5-36	155	34
Ø2100*4500	23.7	24	<=25	0.074-0.4	8-43	245	42
Ø2100*7000	23.7	26	<=25	0.074-0.4	8-48	280	50
Ø2200*4500	21.5	27	<=25	0.074-0.4	9-45	280	48.5
Ø2200*6500	21.7	35	<=25	0.074-0.4	14-26	380	52.8
Ø2200*7000	21.7	35	<=25	0.074-0.4	15-28	380	54
Ø2200*7500	21.7	35	<=25	0.074-0.4	15-30	380	56
Ø2400*3000	21	23	<=25	0.074-0.4	7-50	245	54
Ø2400*4500	21	30	<=25	0.074-0.4	8.5-60	320	65
Ø2700*4000	20.7	40	<=25	0.074-0.4	12-80	400	94
Ø2700*4500	20.7	48	<=25	0.074-0.4	12-90	430	102
Ø3200*4500	18	65	<=25	0.074-0.4	-----	800	137

---
