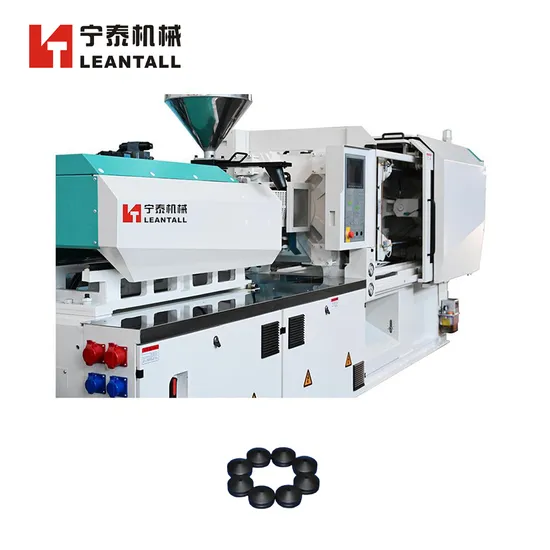

Nt330t High Injection Accuracy Injection Molding Machine Blow for Medical Applications

Product Description

Product Parameters

Part	Name	Unit	NT330
Injection Unit	SCREW DIAMETER	mm	65	70	75
	SCREW L/D RATIO	L/D	22	20	19
	INJECTION STROKE	mm	350	350	350
	NJECTION SPEED	Mm/sec	97	97	97
	SHOT VOLUME(THEORETICAL)	CM3	1161	1347	1546
	INJECTION WEIGHT(PS)	g	1056	1225	1406
	INJECTION PRESSURE	Mpa	202	174	152
	INJECTION RATE	cm³/sec	321	373	428
	SCREW SPEED	rpm	189
Clamping Unit	CLAMP FORCE	Kn	3300
	OPEN STROKE	mm	669
	SPACE BETWEEN TIE BARS	mm×mm	730X670
	MAX.MOULD HEIGHT	mm	680
	MIN.MOULD HEIGHT	mm	250
	EJECTOR STROKE	mm	160
	EJECTOR FORCE	Kn	70
	EJECTOR NUMBER	N	9
Others	MAX.PUMP PRESSURE	Mpa	16
	SEVRO DRIVE POWER	Kw	55
	HEATING POWER	Kw	22.5
	MACHINE DIMENSION(L*W*H)	m×m×m	7.2*1.85*2.35
	MACHINE WEIGHT(ESTIMATE)	T	12

Product Description
Packaging & Shipping
Company Profile
Our Advantages
Q: Are you manufacturer or trading company? A: We are manufacturer with decades experiences,located in Zhejiang province. Q: What is the product range? A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc. Q: Where is your main selling market? A: We have business domestic,USA,Russia,Indonesia,Egypt,Turkey ,Uzbekistan, Pakistan,etc. Q: Will you offer field installation and operator training at the buyer's factory? A: Yes,we will arrange our skilled engineers for filed installation and training. Q: What is the delivery time(equipment production time)? A: It will be ready around 50 days after getting mutual confirmation about the order details and prepayment. Q: Do you also have source for molds and spare parts? A: Yes,we can offer with the competitive quality and reasonable price. Customized as required. Q: What is the standard of package? A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.

---
