Qshi Cement Customized Mobile Dust Proof Wheel Hopper

Product Description

QSHI Cement customized mobile dust proof wheel hopper
Specifications
Dust-trap Hopper:
1, Good weld quality
2, High collection efficiency
3, 12 month quality warranty

Dust-trap Hopper GF-66 adopt vacuum system of dust removal, the collection efficiency of dust-collecting fan can reached over 99.9%, It eliminate the dust pollution effective when loading and unloading cargo, the hopper combine traditional hopper and dust-collecting equipment, include dust-collecting cap, boquilla aspiradora, suction pipe, manifold trunk and dust-collecting fan, A advanced ideal which are different from first sael -than dedusting are taked. It's significantly raise the dust-collecting efficiency.

NO.	items	data
1.	produce name	Dust proof hopper
2.	productivity	800-1600T/H
3.	characteristic of material	bulk cargo such as: grain, coal, corn, sand etc
4.	volume of hopper	30CBM to 200CBM
5.	suitable place	load to truck, conveyor belt etc
6.	movable type	Rubber solid wheel
		use the same trail of crane
7.	size of grating	depend on kind of material
8.	material of hopper	Q345B(With wear plate inside)

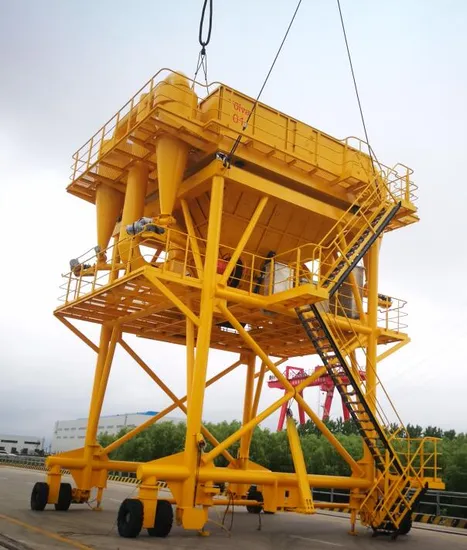

30CBM Rubber Type Mobile Dust-trap Hopper
1. Details
30CBM Rubber Type Mobile Dust-trap Hopper
Volume: ~50 m3
Rated capacity: 800-1000t/h
Height: 9800mm
Total weight: ~38.4t
Materials: All kinds of bulk materials(Density: 1.0-1.5t/ m3)
2. Instruction of the system
The equipment is mainly used to unload and load grain to truck. Via grab type gantry crane to grab grain, then through relevance travelling mechanism of gantry crane to put the grabbed material on the above of load system, then open the grab via gantry crane's PLC control system, the grain will be load into the hopper directly, on hopper, have a electric hydraulic push rod control device, it is use to control the output of grain, to make the hopper work safety, effective and improve working efficiency when load grain to truck.
This equipment have two parts, up side parts and down side parts, because open mouth of feeding funnel is larger enough, so it is difficult for it to cause dust. And at the feed opening of hopper, have installed induced draft cover, so that it can avoid too much dust when loading material to trucks. All adsorbent dust will fall back to the parts of feed opening via back flushing of dirt catcher,
This equipment adopted advanced technology from foreign, reasonable design, and work at a very good condition.
3. ORDER INTRODUCTION
Pls kindly send us your detailed specifications as follow if you are interested in our hopper.
1. What are the material and the material density?
2. What's the height of the hopper?
3. What's the working environment?
We will offer you the best suitable grab with best price and quality. These specifications above can make it clear about your requirements. Thanks very much for your kindly cooperation!

4. Details and drawing
50CBM Rubber Type Mobile Dust-trap Hopper
Volume: ~50 m3
Rated capacity: 800-1000t/h
Height: 9800mm
Total weight: ~38.4t
Materials: All kinds of bulk materials(Density: 1.0-1.5t/ m3)



5. Instruction of the system
The equipment is mainly used to unload and load grain ,fertilizer etc. to truck. Via grab type gantry crane to grab grain, then through relevance travelling mechanism of gantry crane to put the grabbed material on the above of load system, then open the grab via gantry crane's PLC control system, the grain will be load into the hopper directly, on hopper, have a electric hydraulic push rod control device, it is use to control the output of grain, to make the hopper work safety, effective and improve working efficiency when load grain to truck.
This equipment have two parts, up side parts and down side parts, because open mouth of feeding funnel is larger enough, so it is difficult for it to cause dust. And at the feed opening of hopper, have installed induced draft cover, so that it can avoid too much dust when loading material to trucks. All adsorbent dust will fall back to the parts of feed opening via back flushing of dirt catcher,
This equipment adopted advanced technology from foreign, reasonable design, and work at a very good condition.
6. ORDER INTRODUCTION
Pls kindly send us your detailed specifications as follow if you are interested in our hopper.
1. What are the material and the material density?
2. What's the height of the hopper?
3. What's the working environment?

---
