Cheap Price 200mm Round Pipe Cutting Laser Machine for Sheets and Pipes 1530 1540 2060 with Exchange Table for Sale

Product Description

Cheap Price 200mm Round Pipe Cutting Laser Machine for Sheets and Pipes 1530 1540 2060 with Exchange Table for Sale

Introduction

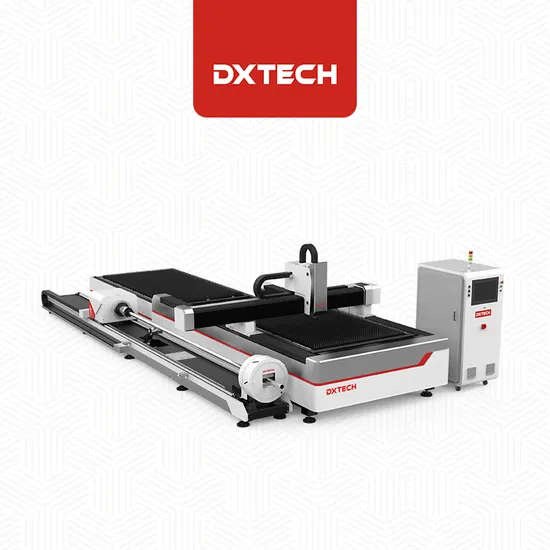

This 3015 FPT plate and tube laser cutting machine is designed for customers who need to cut both sheets and tubes in construction, decoration, furniture, equipment production, and other industries. It realizes easy switching from sheet cutting to tube cutting operations automatically without human intervention, which can not only reduce machine downtime but also improve work efficiency. Customers can customize the pipe cutting part of the machine to 3m or 6m in length and 10-220mm in diameter
Advantages
1. The high-strength steel plate welded bed adopts the groove welding process, which prevents the welded joint from cracking. Additionally, the bed undergoes an internal stress annealing process, guaranteeing its durability and zero deformation rate.
2. The focus position is automatically set according to the material and its thickness, ensuring that the focus position is optimally matched to the process. Automatic edge patrol and automatic obstacle avoidance functions ensure a smooth cutting process.
3. A sensor on the laser head will track the contour of the metal and adjust the distance between the nozzle and the surface of the material to maintain a constant focus to ensure a clean and polished cut edge.
Machine Details

Fully automatic double pneumatic chuck
1. One-click chuck opening and automatic centering will reduce the waiting time for loading and unloading.
2. Pneumatic clamp: with large and constant damping force, the heavy pipe is not loose or slipped, which guarantees cutting accuracy.
3. The special support frame can avoid the sagging deformation of the pipe, improve the cutting accuracy, and prolong the service life of the chuck.
Intelligent focusing laser head 1. With a fully upgraded dust-proof design featuring double-layer protection, the risk of lens contamination is virtually eliminated.
2. The collimating mirror, focusing mirror, and nozzle are equipped with a cooling structure to prevent overheating during use.
Thick-walled carbon steel plate welding bed 1. The heavy-duty design of the bed ensures that it remains deformation-free for many years, providing superior strength and high tensile properties.
2. Rectangular tubes with thicker walls than those found in common machines are utilized, which are well-welded to make the flatbed more stable during laser cutting of sheet metal, stainless steel plate, iron sheet, and other materials.
Technical Parameters

Working Area 1515x4040mm (optional) Laser Output Power 1000W-6000W (optional) X/Y-axis positioning accuracy ±0.03mm X/Y-axis repositioning accuracy ±0.02mm Max Cutting Speed 25m/min Maximum acceleration 1.5G Maximum pipe cutting length 3m/6m Pipe shapes Round, square, rectangular Control system Weihong

Samples
Cutting Thickness
Why Choose DXTECH?
Company Scene
Certifications
Packaging
Customer Feedback

---
