Plastic Washing Machinery Pet Bottle Wash Recycling Line

Product Description

Plastic Recycling Machine Full Set Recycle Washing Line Plastic Wash line
In order to quickly give you quotation, when sending an inquiry, please tell your needs:
1,What are the raw materials you need toprocess? Raw material size?
2,What is the capacity requirement for the machine? 1000kg /h or something else?
specification



PET plastic recycling cleaning line
This PET plastic washing line is used to recycle all PET materials such as waste PET bottles, PET barrels, PET tubes, PET films, PET boxes, etc. The entire recycling line includes conveyor belts, metal detectors, crushers, floating sinks, washing machines and material collection and packaging systems. The waste rigid PET raw materials are crushed, washed, dried, collected, etc., and turned into clean flakes for further granulation. These clean sheets can also be made into fibers, tapes, etc. We can also customize line components according to your special requirements. We have rigid PET plastic washing lines with capacities from 300 kg/h to 2000 kg/h for you to choose from. We can design the layout into "L" or "U" shape according to your requirements.
Working Process:
1. Material Conveying → 2. Crushing → 3. Flotation Washing → 4. Second Flotation Washing → 5. Lifting and drying machine

S / N	Item Name	Function / Remark
1	Conveyor	Feeding material
2	Crusher	Crushing the material into small size
3	Flotation Washing	Floating washing separate the sand,soil and other dirties
4	Second Flotation Washing	Floating washing separate the sand,soil and other dirties
5	Drying machine	Material drying collection and packaging

Product Description
Plastic Floating Materials Crushing Washing Recycling Line
capacity: 300-2500kg/h, Support customization

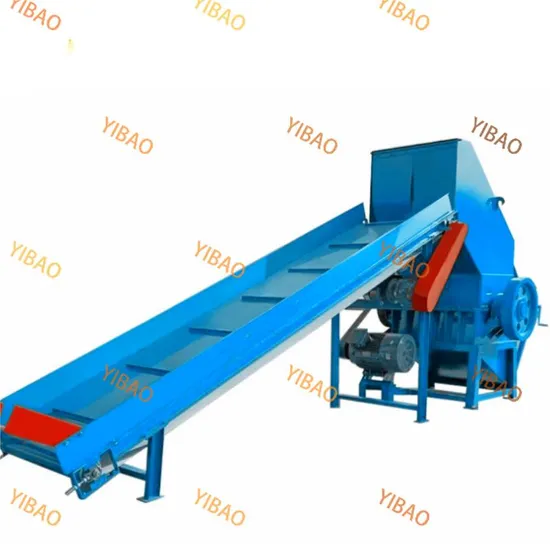

Belt conveyor Length: 6m
Width: 0.6m
Motor power: 1.5kw
Movable on wheels
It can be customized.
Crushing Machine Size: 1.6*1.1*1.75m
Fixed knife: 4 Moving knife: 6
Motor power: 15kw
It can be customized.
Flotation Washing
Size: 4.5*1.1*1.7m
It can be customized.
Drying machine

Motor power: 15kw
processing capacity:400-500kg/h
It can be customized.

Our Service
1.Free training on operation, inspection, maintenance and repairs.2.Engineer available to service video technical support.3.Make regular visits to customers by video to ensure that the equipment maintains the best working condition.4.Help customers achieve maxinum effciency.5.Provide 12months guarantee.6.We are friends with customers and can meet your other requirements.
The waste PET plastic recycling machine production line is widely used to process waste PET bottles (such as: cola bottles, mineral water bottles...etc), PET barrels and any scrap PET plastic that is broken into flakes. It is a crushing, washing and drying production line. Once complete, these clean sheets can be made into fibers, tapes, and more. Double the value.
Packaging & Shipping

Company Profile
Henan YiBao Machinery was founded in 2018,located in Zhengzhou, Henan Province, with convenient transportation, such as free ways,high-speed railways, airports, etc.
We mainly produce Wood Pellet Mill machine, biomass granulator, sawdust pellet machine, Feed Pellet processing Machine, wood crusher, wood chipper, dryer and other related supporting equipment. We have introduced advanced German production technology and cooperated with many domestic universities in research and development.
Now we have a research and development team of more than 20 persons to provide customers with customized various scale production lines. We have a professional sales team(35 persons). They can design and provide suitable equipment or production lines to meet the customers' actual needs. We also have young salesmen with fluent oral English to serve customers by online videos . In addition, we also have a dedicated after-sales service team(10 persons) to provide technical supports and guidance in 24 hours . Our products have been approved CE,SGS,ISO9000 etc.And they have been currently exported to Europe and North America ,Southeast Asia, Africa and other regions and countries. The quality and after-sales service makes us a good reputation in the machinery industry. We had,have,and will have been committed to protecting the environment and improving the ecosystem as our purpose and principle.!!!

---
