Digital Accurate Clean Edge Cut by Knife Leather Cutting Systems Genuine Leather Fur Cutting Equipment

Product Description

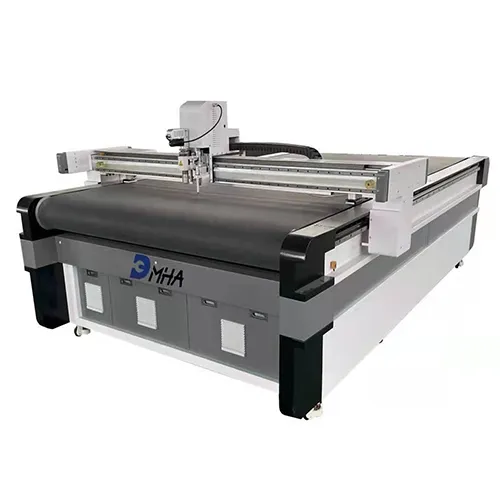

Automatic Paper Cutting Plotter
Knife cutting machine could work with your computer by Ethernet cable, you can send any design shape to this cutter for cutting purpose. It is able to cut Leather, cardboard, paper honeycomb, corrugated cardboard, glass fiber, carbon fiber, sticker, film, KT-board, foam board, rubber, cloth, fabric, gasket material, garment cloth, footwear materials, bags materials, non-woven fabrics, acrylic board, carpets materials, car mat materials, sponge, PU,EVA,XPE,PVC,PP,PE,PTFE,ETFE and composites.

Technical Parameters
Model	DMHA-CM1625
Machine Head	Intelligent Cutting Bar
Safety device	Infrared induction automatic emergency stop
Translation speed	2500mm/s
Cutting speed	0-1000mm/s
Cutting thickness	0-50mm (depending on the hardness of the material)
Platform Design	Automatic feeding rolling platform
Fixing method	Tracking sub-regional vacuum adsorption
Repeatability	±0.01mm
Servo resolution	≤0.01 mm
Cutting accuracy	±0.1mm
Buffer capacity	2GB
CNC panel	Chinese and English LCD touch screen
Transmission system	Servo motor, linear guide
Servo motor, linear guide	11KW
Size	2000*3600*1100mm
Working Area	1600*2500mm
Weight	1200kg
Rated voltage	380V±10%
Cutting material	leather, composite material, sponge, eva, foam, fiber and so on

Main performance and features: 1. Imported Taiwan square linear guide and Japanese servo motor ensure high accuracy, fast cutting speed and stable working performance. 2. Whole machine is welded with thick square seamless steel structure and treated with high temperature, ensures high accuracy, no deformation and super long service life 3. The whole piece aluminum platform is honeycomb structure, not easy to deform, sound-absorbing, etc.
4. DMHA-CM1625 was designed easy to install, set-up and operate.
5. Being equipped with infrared sensor and emergency stop devices, guarantees safety.
6. Cutting by knife not laser, no air pollution, no burnt edge, cutting speed is 5-8 times faster than laser cutting machine.
Details
Service: Pre-sale: (1)regarding your demands , the best suitable machine will be recommend you . the customized machine also support (2)regarding your country requirements, some certificates will supply to help you clearance. Like CE,CO, FORM-A,FORM-B,FORM-F,original certificate signed by Embassy.etc. (3)all the machine will be tested before delivery, and we will take the video and pictures to you.when you receive it , it can work directly. (4)You could visit the factory at any time! After-sales (1)we will supply all the control system and software operate manual,so you can operate the machine easily refer it. (2)All the machine problem , you can ask me any time , we will help you solve by online way ,or tel,email,remote video.
About Us DAAP INTERNATIONAL(YANTAI)CO.,LTD is a production and trade as one integrated enterprise which is located in Yantai City Shandong Province China. DAAP is integrated in double sided tape dispenser,knife cutting machine,labeling machine etc. In face of fierce competition, our company will be in good faith to create enterprise to won the trust of our customers.

---
