Ranch Anti-Corrosion Cow Manure Solid Liquid Separator

Product Description

Product Description
JGFL-7.5 solid-liquid separator is a special equipment for manure treatment, developed and produced by our company, which is mainly to solve the problem of manure treatment and manure reuse difficulties in farms, and then improve the environmental pollution problems of farms and their surroundings. The main body, mesh screen and feeding barrel of the equipment are made of high-quality 304 stainless steel, and the screw shaft is made of high-quality 316 stainless steel with wear-resistant coating, which can ensure the anti-corrosion and delayed service life of the equipment.The transmission part adopts an F-gear reducer to ensure the stability of use.
Specification

NO.	Item	Parameter range
1	Overall material	SUS304
2	Motor power	7.5KW
3	Length, width, height	2360MM/970MM/1220MM
3	Maximum throughput	35m³/h
4	Moisture content of solids	<=65%
5	Mesh screen gap	0.75-1.0MM
6	weight	640KG
7	Inlet diameter	Φ100MM
8	Overflow diameter	Φ150MM
9	Drain port diameter	Φ150MM

Remark
Separator type should be choose according to the bedding materials used in the dairy farm.

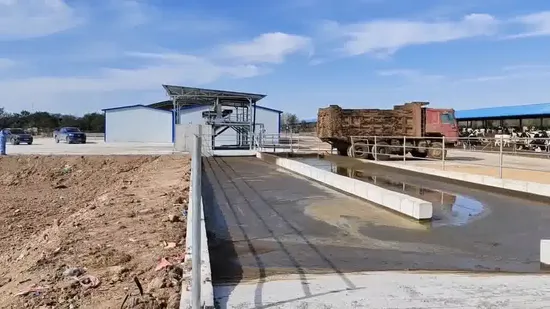

Application
Company Profile
FAQ Q1. Are you a factory or trading company?A:We are a professional and comprehensive dairy farm equipment supplier integrating R&D, production and sales. Q2.May I visit your factory?A:Sure, we warmly welcome you all pay a visit to our company. We can arrange pick ups at airport and station. Q3: Can you guarantee your quality?A: Of course. We have about 20 years experiences in this field. We have skillful production,good workmanship as well as strict QC. we put high quality on our reputation.

---
