Advanced L Profile Angle Bar Cold Forming Machine with Cr12 Roller Material

Product Description

Product Description

Light Steel V Bar Wall Angle L Bead Profile Making Roll Forming Machine

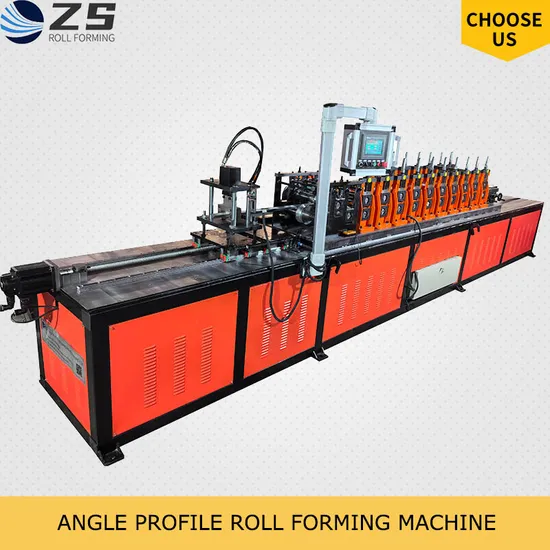

Introducing the Angle Profile Roll Forming Machine, a state-of-the-art, fully automatic, high-speed marvel. Designed for seamless production, it features a robust casting frame and double bearings at each station, ensuring stable and powerful operation. Its advanced PLC design maximizes workspace efficiency, making it an invaluable asset in today's manufacturing landscape.
With over 12 years of expertise in the roll forming machine sector, we are relentless in our commitment to quality enhancements. Our L Angle Bead Roll Forming Machines are engineered for exceptional performance, empowering customers to achieve higher profitability.
The V Bead Steel Profile Cold Forming Machine boasts a customizable design, accommodating GI thicknesses of 0.4mm-a widely accepted market standard. Each unit undergoes rigorous testing with a full coil, ensuring flawless performance prior to shipment.
Equipped with a state-of-the-art 3M Automatic Receive Table, this Light Steel Wall Angle Profile Forming Machine significantly enhances production efficiency while reducing labor costs.
Choose the innovative cassette design, featuring one main table and a quick-change full set of rollers, to minimize costs and enhance operational flexibility.
Roll Forming Machine Components:

No.	Name	Qty
1	De-coiler	1 Set
2	Main roll forming system	1 Set
3	Hydraulic pump system	1 Set
4	PLC control system	1 Set
5	Receive table	1 Set

Work Flow
Decoiler→Feeding Guide Device→Roll Forming System→Hydraulic Non-Stop Cutting and Punching Device→Exit Rack

No.	Item		Unit	Parameter	Remark
1	Material
		Type		PPGI, PPGL, GI, GL, PPAL	As requirement
		Thickness of Material	mm	0.3-0.6mm	As requirement
2	Material Width		mm	Follow with design	As requirement
3	Production Speed		m/min	Common speed: 35m/min	Adjustment
				High speed: 35-40m/min	As requirement
4	Effective Width of Product		mm	Follow with design	According to drawings
5	Roller Material			45#, Cr12, GCr15, GCr12MoV	As design
6	Drive Type			By Chain or Gear or Gearbox
7	Motor Power		kW	5.5	As design
8	Brand of Electric Control System			Delta or Siemens	Selectable
9	Dimension ( L* W * H )		m	5.5*1.2*1.5m	Based on design
10	Warranty		Month	15

Feeding Guide Device
Strategically positioned at the machine's main entrance, the feeding guide device ensures raw materials are perfectly aligned as they enter the roll forming system. It features a manual screw mechanism for independent width adjustments.
Rolling Forming System
Forming Mold:Constructed from Cr12 molding steel and subjected to vacuum quenching heat treatment,achieving an extraordinary hardness of HRC60-62,and precision-ground on a CNC lathe forunparalleled performance.
The precision-machined roller surface with CNC lathe ensures superior hole and end face alignment.
Shafts Material:Crafted from high-strength 40Cr steel, processed on CNC lathes, heat-treated, and finished with a hard chrome coating,achieving a thickness of 0.04mm
with a mirror finish for enhanced durability and rust resistance.0.04mmsurface with mirror treatment for extended life and anti-rust properties.
Main Motor and14Reducerscombination drives the system, comprising approximately12 steps
to form.Main Motor: 5.5KW
with frequency speed control.
Casting Frame
The casting frame acts as the primary structure, reinforced with double bearings at each station for enhanced stability and power. Each station is clearly numbered for straightforward roller adjustment, facilitating exceptional customer support.
Servo Motor Driven Non-Stop Cutting
Power: 2.3KW for the servo motor,
delivering superior speed and efficiency.
The Hydraulic Oil Pump System features an integrated design, ensuring seamless connectivity for the cutting system. This streamlined approach offers a clean look and enhanced safety.
It boasts a sleek and modern appearance along with enhanced safety features for operation.

Our Angle Profile Roll Forming Machine undergoes rigorous testing, running for a minimum of 1 hour with meticulous sample inspections to ensure unparalleled precision and excellence.

Heavy-Duty Manual Decoiler: 1 Set - Engineered for demanding tasks with exceptional durability and reliability.
Expertly designed to support a substantial weight capacity of up to an impressive 3 tons, making it highly effective and dependable.
Our cutting-edge hydraulic pump guarantees automatic, precise, and efficient cutting operations, elevating productivity.
Powered by a robust 4KW gear pump, our machine delivers reliable performance, becoming an indispensable asset for improved productivity.
Pump Type: High-Efficiency Gear Pump - Engineered for optimal performance and superior efficiency.
Comprehensive After-Sale Service: Your success is our priority, reflected in our unwavering commitment to exceptional support.
1. Warranty: We provide an industry-leading18-monthwarranty from the date of machine receipt, ensuring your investment is secure and well-protected.
Experience unmatched peace of mind with our extensive 18-month free replacement parts service. This outstanding offer ensures smooth and efficient operations, minimizing downtime and maximizing productivity.
2. Benefit from our lifelong technical support for all our machinery. This perpetual commitment ensures your business remains productive and efficient, with expert assistance readily available.
3. On-Site Assistance: Our skilled technicians are available to provide on-site installation and training for a nominal fee, ensuring your team operates our machinery with complete confidence and expertise. Terms of Trade: We strive for clarity and transparency in all business transactions, building trust and reliability.

Minimum order quantity (MOQ)	1 Set
Delivery time	about 60 workdays
Port of loading	port of Tianjin
Type of payment	by T/T or by L/C
Export	to more than 80 countries and regions, including South Korea,Taiwan, UK, Ireland, Greece, Australia, USA, Mexico, Brazil, Russia,Saudi Arabia, UAE, Iran , India, Singapore, Malaysia, Thailand, Indonesia, Philippines, Vietnam, South Africa, Nigeria, Egypt, etc

Packing Style: Secure and protective packaging ensures your machinery is safeguarded during transit for safe and intact delivery.

Packing method

Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.

---
