Ceramic Rubber Pulley Coating Lagging Tear Resistance Rubber Ceramic Sheet

Product Description

Ceramic rubber pulley coating lagging tear resistance rubber ceramic sheet
Our advantages:
1. Rich experience on production process of Rubber ceramic lagging sheet
2. Strict quality control on rubber ceramic lagging sheet
3. Good delivery time
4. Custom shape rubber ceramic lagging sheet are available.
5. Excellent bonding between rubber and ceramic
We also provide pulley ceramic lagging, pulley rubber lagging on-site.

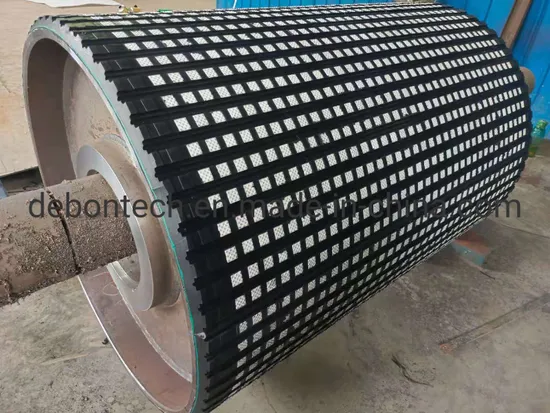

Pulley rubber ceramic lagging
1. High alumina ceramic tiles offer excellent wear resistance.
2. Longer wearlife, lower maintenance cost.
3. CN layer backed ceramic lagging, cn layer delivers fast and good bonding.
Ceramic rubber pulley lagging rubber sheet can improve conveyor belt performance significantly.
Ceramic lagging is used to reduce conveyor belt slippage, improve belt tracking and extend life of conveyor pulley and belt.

Ceramic lagging with cn bonding alyer.

Technical data of ceramic pulley lagging:

1.Aluminum Oxide:95% al2o3.
2.Ceramic Hardness(Mohs) >9t
3.Working temperature:≤ 85 centigrade
4.Rubber Hardness: 60±5 Shore A
5.Tensile strength:15 MPa
6.With cn bonding layer or as request.

Installation of ceramic pulley lagging
Ceramic pulley lagging is suitable for pulleys performing in the most difficult conditions.
It can be installed through cold vulcanization process on site or at pulley manufacturer.
Rubber Pulley Lagging

Rubber pulley lagging can reduce slippage and extend service life of conveyor belt.

Features of rubber pulley lagging:
1.Reduce belt slippage
2.Extend belt and pulley life
3.Available in Natural Rubber and FRAS approved rubber
4.With cn bonding layer


Technical Data:
Material: NR ,SBR, etc.
Hardness: 65 shore a or as request
Abrasion loss: 100mm3
Overall thickness:8mm,10mm,12mm,15mm,20mm,etc
Length:10m, 20m, 30m, etc

Pulley lagging rubber sheet in different dimensions and colors are all available.



Company:
Jiaozuo Debon Technology CO., LTD. is a manufacturer specialized in designing and manufacturing rubber products, polyurethane products and conveyor accessories.

Main products include: various kinds of rubber sheets, rubber lagging, impact bar, custom rubber products, polyurethane sheets and custom polyurethane products, etc.

Debon is a manufacturer with 106 employees, including 35 engineers. The company is certified to ISO 9001:2008 Quality Management System, and rubber lagging products were certified to "SAFETY CERTIFICATE OF APPROVAL FOR MINING PRODUCTS".

Quality Control:
To ensure high quality, strict quality control are implemented in all factors of production: raw material inspection, the whole production processes, finished products inspection, etc.


Export:
Products have been exported to Australia, USA, UK, France, Chile, Russia, etc., high quality has been approved.


Further information, just contact Mona Cheung.

---
