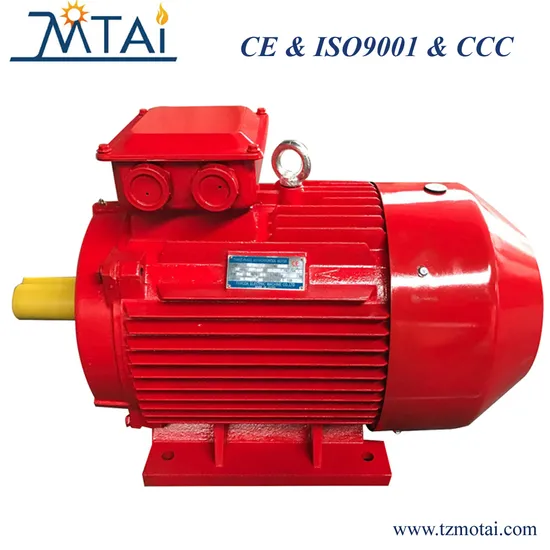

IE3 Premium Efficiency AC Industrial Electric/Electrical Induction Asynchronous Motor with CE

Product Description

Today IE3 motors provide premium efficiency and are helping to reduce CO2 levels each year.
For improved efficiency read, less energy cost and less impact on the environment. A double win.
There are a number of ways to improve motor efficiency, for example simply ensuring you do not oversize or run continuously when not required.
IE3 Series Premium efficiency Aychronous motor
IE3 series are of the totally enclosed, three phase squirrel cage type,
built to comply with international IEC and EN standards. Motor conforming to other
national and international specifications are also available on request.
All production units are certified to ISO9001 international quality standard as well
ISO14000 environ-mental standard and confirm to all applicable EU Directives.
Frame size:80M~355L
Output:0.55kW~375kW
Poles:2.4.6.8P
Applications: General purpose including cutting machines, pumps, fans, conveyors, machines tools of farm duty and food process.
Features: These series motors have many virtues, including
beautiful Profile, high efficiency and energy saving, class F
insulated, the protective class is IP55, low noise, little vibration,
running smoothly.

Comply with IEC/EN Standard

IEC/EN 60034-1

IEC 60072

IEC/EN 60034-2-1

IEC/EN 60034-5

IEC/EN 60034-30

IEC/EN 60034-6

IEC 60034-8

IEC/EN 60034-7

IEC 60034-12

IEC/EN 60034-9

IEC 60034-14

Operating Conditions:

Ambient temperature: -15ºC≤0≤40ºC

Altitude: not exceed 1000m

Rated voltage: 380V ot any voltage between 220V - 760V

Rated frequency: 50/60Hz

Protection class: IP55

Insulation class: F

Cooling method: IC141

Duty: S1 (continuous)

Connection: Star-connection for below 3kW, delta-connection for 4kW and above

1.TECHNICAL PRAMAMETERS:
2.INSTALLATION DIMENSION
3.Exploded Drawing

4.Bearing Size
5.Terminal box info.
6.FACTORY OUTLINED LOOKING:
7.PAINTING COLOD CODE:
8.ADVANTAGE:
Pre-sales service:
•We are a sales team, with all technical support from engineer team.
•We value every inquiry sent to us, ensure quick competitive offer within 24 hours.
•We cooperate with customer to design and develop the new products. Provide all necessary document.
After-sales service:
•We respect your feed back after receive the motors.
•We provide 1years warranty after receipt of motors..
•We promise all spare parts available in lifetime use.
•We loge your complain within 24 hours.

---
