Farm Tractors and Implements Rotary Tiller/ Disc Plow/Harrow/Ridger etc.

Product Description

Product Description
We are professional supplier of tractor machine accessories, can provide 20 hp to 260hp tractors, as well as supporting agricultural tools, such as rotary tillers, share plows, disc plows,harrows, lawn mowers, hole diggers, front end loader, backhoe, snow blower, sweeper, grass baler, scraper, raker, trailer, slasher, corn/wheat/potato planter, harvester, ridgers etc.

Product Parameters
1, Farm tractors:
Specifications of 25-50hp tractors:

Model	254	304	354	404	504
Drive	4WD	4WD	4WD	4WD	4WD
Power	25HP(18.4kw)	30HP(22.1kw)	35HP(25.7kw)	40HP(29.4kw)	50HP(36.8kw)
Wheel tread	1200mm	1200mm	1200mm	1200mm	1200mm
Wheel base	1700mm;	1700mm;	1800mm;	1800mm;	1700mm;
Min ground clearance	360mm	360mm	360mm	360mm	360mm
Dimension	3050*1500*2030mm	3050*1500*2030mm	3050*1500*2040mm	3250*1500*2130mm	3050*1500*2300mm
Weight	1300kg	1350kg	1450kg	1500kg	1550kg
Gear shift	8F+2R	8F+2R	8F+2R	8F+2R	8F+2R
Clutch	Single acting clutch	Single acting clutch	Single acting clutch	Single acting clutch	Single acting clutch
Steering	Mechanical / Hydraulic	Mechanical / Hydraulic	Mechanical / Hydraulic	Hydraulic	Hydraulic
Hydraulic output valve	1inlet 1outlet	1inlet 1outlet	1inlet 1outlet	1inlet 1outlet	1inlet 1outlet
Front tire	6.0-16	6.0-16	6.0-16	6.0-16	6.0-16
Rear tire	9.5-24	9.5-24	9.5-24	9.5-24	9.5-24
PTO	540/720	540/720	540/720	540/720	540/720

----
2, Rotary tillers):

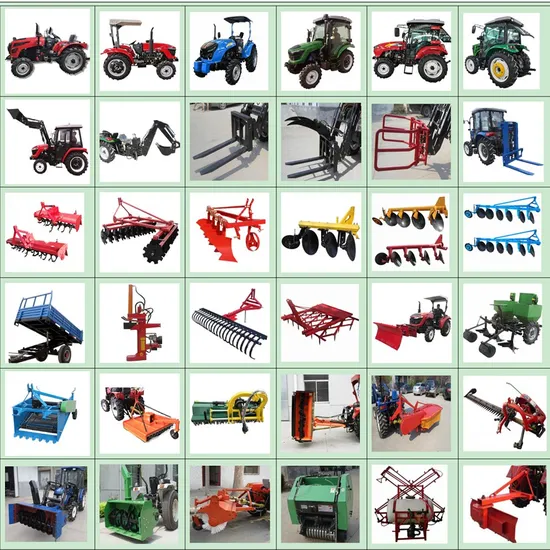

Images show:
Specifications of rotary tillers:

Model		Working width	Working depth	Q'ty of blade	Type of blade	Weight	Matched power(hp)
1GQN-125		1250mm	120-160mm	26pcs	IT225	220kg	15-25
1GQN-140		1400mm	120-160mm	30pcs	IT225	230kg	20-30
1GQN-150		1500mm	120-160mm	34pcs	IT225	240kg	25-40
1GQN-160		1600mm	120-160mm	38pcs	IT225	260kg	30-50
1GQN-180		1800mm	120-200mm	42pcs	IT245	415kg	50-60
1GQN-200		2000mm	120-200mm	46pcs	IT245	430kg	55-75
1GQN-220		2200mm	120-200mm	50pcs	IT245	445kg	60-80
1GQN-250		2500mm	120-200mm	58pcs	IT245	460kg	75-80
1GQN-300		3000mm	120-200mm	70pcs	IT245	520kg	80-120

-----
3,Plough / disc plows :
--
Specifications of disc plows:

Model	Working width	Working depth	Q'ty of disc	Disc diameter		Weight(kg)		Matched power(hp)
1LYQ-220	400mm	200mm	2pc	510mm		150		18-25
1LYQ-315	450mm	180mm	3pc	460mm		180		25-40
1LYQ-320	600mm	200mm	3pc	510mm		200		25-40
1LYQ-322	660mm	220mm	3pc	560mm		380		45-50
1LYQ-422	880mm	220mm	4pc	560mm		420		55-65
1LYQ-522	1100mm	220mm	5pc	560mm		470		80-90
1LYQ-325	750mm	250mm	3pc	660mm		420		50-80
1LYQ-425	1000mm	250mm	4pc	660mm		496		90-110
1LYQ-525	1250mm	250mm	5pc	660mm		550		120-140
1LYQ-625	1500mm	250mm	6pc	660mm		630		140-160
1LYQ-230	600mm	300mm	2pc	710mm		380		45-60
1LYQ-330	900mm	300mm	3pc	710mm		440		55-80
1LYQ-430	1200mm	300mm	4pc	710mm		520		90-110
1LYQ-530	1500mm	300mm	5pc	710mm		650		120-160
1LYQ-630	1800mm	300mm	6pc	710mm		700		140-180

----
4,Disc harrows :

--
Specifications of disc harrows:

Model	Working width	Working depth	Q'ty of disc	Disc diameter	Overall weight	Matched power
1BQX-1.1	1100mm	120mm	12pcs	460mm	200kg	12-15hp
1BQX-1.3	1300mm	120mm	14pcs	460mm	220kg	15-20hp
1BQX-1.5	1500mm	120mm	16pcs	460mm	240kg	25-30hp
1BQX-1.7	1700mm	120mm	18pcs	460mm	260kg	35-40hp
1BQX-1.9	1900mm	120mm	20pcs	460mm	310kg	40-50hp
1BQX-2.3	2300mm	120mm	24pcs	460mm	360kg	50-60hp
1BQX-2.5	2500mm	120mm	26pcs	460mm	390kg	70-90hp

----
5,Ridgers:

--
Specifications of ridgers:

Model	Working width	Ridging width	Ridging height	Disc diameter	Weight	Matched power
3Z-80	800mm	200-450mm	150-240mm	460mm	150kg	20-30hp
3Z-120	1200mm	200-450mm	150-240mm	460mm	160kg	30-50hp
3Z-140	1400mm	200-450mm	150-300mm	460mm	190kg	50-80hp
3Z-180	1800mm	300-500mm	150-300mm	660mm	200kg	60-80hp
3Z-260	2600mm	300-500mm	150-300mm	660mm	280kg	90hp

FAQ
1, What tractors can you match the attachments tools?--- We can supply the tools for tractors from 25hp to max 260hp.2,What is the lead time normally?-- About 10-15days after getting the deposit money from client;3,What is the payment terms?-- T/T. 50% deposit in advance and 50% balance before shipment;4,How about the shipment method?-- Normally, if only one tractor without cab, we will make plywood case with steel frame packing to pack the tractor and do LCL shipment; If the tractor with cab, we suggest to use one single container to ship it.5, How about your quality control?--We have engaged in the tractor field for many years, now we have our own brand and have passed the EU CE certification, the quality is ensured.6, How about your warranty and after-sale service?---The warranty for the tractor is 1 year, if any part broken within one year, we will send the parts to client by express.If there is question about the operation or using, we will give technical support to guide client to do well.7, Any free spare parts supply for the tractor?--- Normally, we will give extra oil and diesel fitlers for spare parts.But it depends the order quantity.
