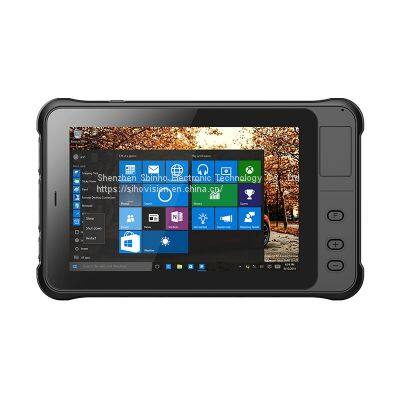

| Model:R-I75BPH |
| PC |
| CPU | Intel Cherrytrail Z8350, 1.44Ghz-1.92GHz |
| GPU | Intel® HD Graphics |
| RAM | 4GB |
| SSD | 64GB EMMC |
| Indicator light | Charging indicator light,which is red flash when low power,keeping on red light when power more than 20% , ,keeping on green light when full charged . |
| L/P-Sensor | Light/Proximity sensors |
| G_sensor | Gravity acceleration sensor |
| WIFI | WIFI 802.11(ac/a/b/g/n) dual frequency 2.4G+5.8G WIFI |
| Bluetooth | BT4.2 (BLE) class 1, Transmission distance: 10m |
| 3G | Optional: H350 GSM/GPRS/EDGE Band(MHz):900/1800;WCDMA Band(MHz):900/2100 |
| 4G | EC25-E : LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8 |
| GPS | U-BLOX M8Q GNSS.Support GPS/Beidou/glonass |
| NFC | Optional: NXP NFC 13.56MHz Support ISO/IEC 14443A/14443B/15693/18092/mifare protocol, Card reading distance: 4cm |
| Camera | front 2.0MP, rear 5.0MP Auto focus with flash |
| Speaker | 8Ω/0.8W waterproof BOX speaker*1 |
| Mic | Sensitivity:-42db, output impedance 2.2kΩ |
| Operation System | windows 10 Home/ Pro/ IOT 64bit |
| LCD panel |
| Panel size | 7" |
| Resolution | 800*1280 IPS |
| Aspect ratio | 16:10 |
| Brightness (cd/m²) | 1000 cd/m2 |
| Touch panel |
| Touchscreen Type | 5 points capacity TP,G+G, support touch with wearing gloves and wet finger |
| Surface Hardness | 7H |
| Interface |
| USB | 1*MicroUSB, 1*Android OTG |
| Pogo Pin | 1*12pin Pogo Pin |
| Audio Output | 1*3.5mm |
| HDMI | HDMI 1.4a Type C*1 |
| TF Slot | 1*TF Slot, max: 128G |
| SIM | 1*SIM |
| Power | 1*DC 5V 3A, Optional: Overvoltage protection of circuit,Max DC24V |
| OTG Cable | USB OTG to MICRO USB cable length: 45mm |
| USB Cable | USB to micro 5P L=1.2M 4core aluminum foil shield cable |
| Power Supply |
| Power Adaptor | AC100V ~ 240V, 50Hz/60Hz, Output DC 5V/3A |
| Battery | Removable Li-polymer battery |
| Capacity: 3.7V/7500mAh |
| nearly 6hours(50% volume sounds, 50% brightness, 1080P HD video display by default) |
| Operating Environment |
| IP grade | IP65 waterproof |
| Drop Height | 1.22cm composite wood floors, in operation status |
| Operate Temperature | -20 °C to 60 °C |
| Store Temperature | -30 °C to 70 °C |
| Humidity | Humidity: 95% Non-Condensing |
| Packing Details |
| Net weight | 707g |
| Gross weight | 1294g |
| Product Dimension | 216.98*133.96*21.4mm |
| Packing size | 325*162*61mm |
| Other |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
| Color | Black |
| Module extension (Optional) |
| One-dimension barcode | N 4313, Optical resolution: 5mil, Scan speed: 50 times/s, Code system:UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39 ,Code 32,Code 93 ,Code 11 |
| Two-dimension barcode | Honeywell N3680 hardcode/ Optical resolution:5mil/ scan speed:50 times /s, Code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse |
| Fingerprint | The fingerprint module authenticated by Chinese Ministry of public security, support the collection of resident fingerprint which built in their ID card. |
| UHF | M-550 UHF RFID slim all-in-one module. |
| ID Module | support reading the 2nd,the 3rd ID card information and the fingerprint information built-in. |
| Optional Accessories |
| Accessories | Docking Charger, Hand-strap, Vehicle Mount, 5V3A Car Charge |
1. We offer a life-long maintenance that is free in the one year.
2. In the two year after you received the products , if there is quality problem happening to the products, pls send us the pictures or video to showing the fault phenomenon, so can help our technicians to analyze the cause of problem, then we will send you the necessary spare parts and teach you how to repair it, free of charge.
3.If we can't find out the cause of failure, you can return the defective product to us, we will repair it and resend it to you in one week. If the defective product can't be repaired, we will send you a new one for replacement, free of charge.
4. Please note that man-made damage is out the scope of free warranty.
5. After the two year of free warranty, we will charge you the factory cost for the replaced accessories, free for maintenance.
6. If your order comes to a certain quantity, we will provide you some spare units, for replacing the defective product. The number of spare units depends on the quantity of your order and the model of the products.
7. Pls feel free to contact our customer service team. After receipt of your complaint feedback, we will appoint the qualified person to contact you within 12 hours and solve your complaint.
