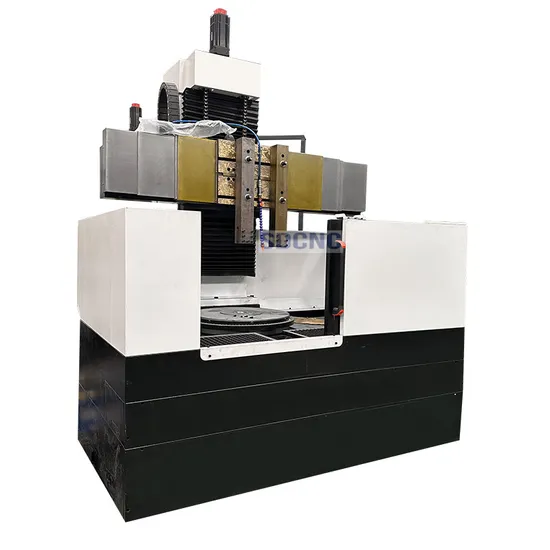

Economic and Reliable Heavy Duty CNC Single Column Vertical Lathe Machine Ck518

Product Description

SDCNC CNC Vertical lathe is a kind of large mechanical equipment, which is used to process large and heavy
workpieces with large radial size and relatively small axial size and complex shape. Such as a cylindrical surface,
an end surface, a conical surface, a cylindrical hole, a conical hole and the like of various discs, wheels and sleeve
workpieces, and can also be processed by means of additional devices such as running threads, spherical surface
turning, imitating machining, grinding and the like; compared with a horizontal lathe, the workpieces are clamped in
the clamping decoration of the horizontal lathe, while the main shaft axis of a vertical lathe is in a vertical layout, and
the table surface of a worktable is in a horizontal plane; Therefore, the clamping and alignment of the workpiece are
more convenient. This arrangement reduces the load on the spindle and bearings, so the vertical lathe can maintain
its working accuracy for a long time.
Product Parameters

Model	CK518
Max.turning diameter(mm)	800
Working table diameter (mm)	700
Max. height of workpiece (mm)	800
Max. weight of work-piece (kg)	1500
Range of worktable rotation speed (rpm)	30-260
Feeding series	stepless
Range of tool rest feed (mm/min)	0.25-90
Cross beam travel (mm)	500
Horizontal travel of tool rest (mm)	500
Vertical travel of tool rest (mm)	450
Size of section of cutter bar (mm)	30*40
Main motor power (kw)	11

---
