Telescopic Swing Boom Euro 5 Standard Diesel Small Crawler Mini Spider Crane

Product Description

1Ton to 14 Tons AC Power +Diesel Engine Crawler Spider Crane with Telescopic Arms
Product Description

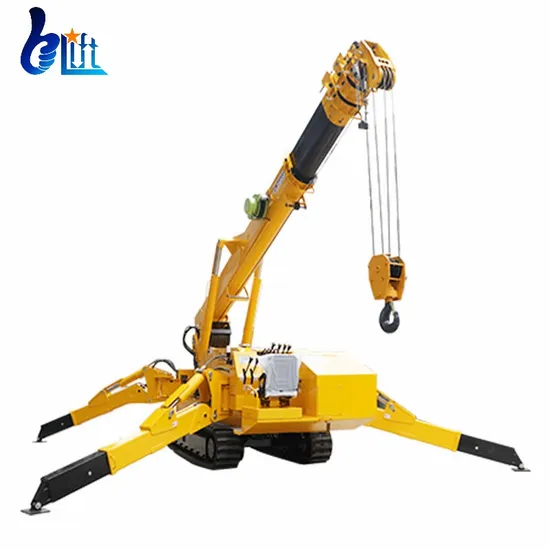

Blift Brand Crawler Spider Crane combines the space-saving qualities of a spider crane with the powerful lifting capabilities of a pick-and-carry crane inside one practical machine. This compact equipment offers an alternate solution to the difficulties associated with lifting in areas with restricted access.
Features and Advantages 1. The Crawler Spider Crane for moving loads quickly, easily, and safely.
2. Spider crane, suitable for occasions with limited space.
3. The spider crane is a full-slewing, boom-type, full-hydraulic transmission crane.
4. The main arm is 4-5 sections. The main arm section adopts a U-shaped structure. The single-stage telescopic oil cylinder and the wire rope telescopic mechanism can realize the synchronous expansion and contraction of the main arm.
5. The telescoping limit of the boom uses the double insurance of the marking line and the alarm.
6. High security Guarantee: Equipped with emergency stop sytem and emegency descent system;
7. Easy to install and operate: Full set of installation videos and user manual available;
8. Easy to maintenance: High quality accessoires equipped and speical design for the structure;
9. Ecnomical and long service life;
10. Multiple control mode: Platform control panels; Stand Column controllers; Remote controllers.
Product Parameters

Model No.			SBL1.2C	SBL2.0C	SBL3.0C	SBL5.0C	SBL8.0C	SBL10.0C	SBL12.0C	SBL14.0C
Load capacity			1.2tons	2 tons	3 tons	5 tons	8 tons	10 tons	12 ton	14 tons
Max Ground Lifting Height			6.5m	7m	10.5m	17m	18m	22m	23.5m	23.5m
Max Working Radius			5.8m×0.2t	6.0m×0.25t	10.0m×0.8t	16.0m×0.3t	17m×0.3t	21m×0.8t	22m×0.8t	22m×1.2T
Walking device		Walking mode	Hydraulic motor drive, two speed
		Walking speed	0-2.0km/h	0-2.0km/h	0-2.5km/h	0-2.5km/h	0-2.5km/h	0-3km/h	0-3km/h	0-3km/h
		Grade Ability	20°(36%)
Engine		Start mode	Electric start
		Startup Tempt.	-5°C~40°C
		Engine	AC Electric + Diesel Dual Power
		Battery capacity	12v 45AH	12v 45AH	12v 45AH	24v 45AH	24v 45AH	24v 45AH	24v 45AH	24v 45AH
Weight(KG)			1200kg	1500kg	2400kg	6300kg	7600kg	8200kg	11500kg	13500kg
Vehicle Size(e( L*W*H)(m)			2.1*0.6*1.4	2.2* 0.95*1.65	3.4*0.95*1.65	4.5 *1.4 * 2.1	4.95*1.6*2.25	5.5*1.6*2.25	5.7*1.8* 2.4	6.5*2*2.4m

Detailed Photos
Company Profile Shadong Belift machinery is specialized in the industry of Manufacturing Aerial Work Platforms and Material Lift Platforms. Establised in the year of 2015, now our products are welcomed the customers all over the world.
Certificate: CE, ROHS, SGS, ISO etc.
Welcome to visit us and negotiate business. We will pick up you and arrange the accommodation hospitally.
Dealers and Wholesalers are especially welcomed and we will give special discounts.
1.Adopting perfect shot blasting treatment and anti corrosion paint spraying, it is beautifal in apperance.
2. Unique design for Compact structure,it is strong enough to support the loading.
3. Produced by automatic production line and the quality is highly guaranteed.
4. High strengthened steel structures, smoothly lift up and drop down, easily operated, very few faults.
5. Power sources: customised as per the local standards
After Sales Service 1.Spare parts provided freely within quality warranty.
2. Providing user's manual.
3.Liftetime techinique support.
4.24 hours telephone and Internet service
FAQ 1.How can customer buy parts once it break down?
The scissor lift table adopt most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.
2.How can customer repair the scissor lift table.
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.
3.How long is the quality guarantee?
One year quality guarantee.If it breask down within one year,we can send the parts free of charge to you.
Certificate:CE ROHS SGS ISO ETC.
