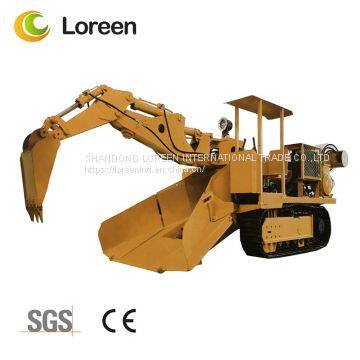

Loreen Zwy-100/45.75L Mining Tunnel Coal Rock Crawler Mucking Loader
Application
ZWY (flameproof) series coal mining loader is a complete hydraulic loading equipment integrating loading, transportation and walking. It is mainly used for the loading of coal, semi-coal rock and rock roadway with the gradient of no more than 12 in the underground coal mine. Mining Tunnel Loader-LOREEN can be used with mining car, shuttle car, scraper conveyor, belt conveyor and other secondary transport equipment. It can also be used in railway tunnel construction, water diversion tunnel and national defense cave construction. It is suitable for large, medium and small roadways with sections 2.5 meters wide and 2.2 meters high.
Loader Machine manufacturer：LOREEN
Main Parameter of Underground Mining Tunnel Coal Rock Crawler Mucking Loader Machine
Item
| Unit
|
|
Operating Weight
| KG
| ≈1380
|
Loading Ability
| m3 /h
| ≈100
|
Digging Width
| mm
| 3300
|
Digging Distance
| mm
| 1650
|
Digging Height
| mm
| 2550
|
Digging Depth
| mm
| 400
|
Dumping Height
| mm
| 2200
|
Dumping Distance
| mm
| 2500
|
Traveling Speed
| m/s
| 0.3
|
Grade ability
| °
| 12
|
Working Pressure
| MPa
| 13
|
Ground Pressure
| kPa
| <0.1
|
Ground Clearance
| mm
| 280
|
Total Power
| kw
| 45.75
|
Dimensions(LxWxH)
| mm
| 9175*1900*2490
|
>>
