Wnk 4-20mA 0.5-4.5V I2c IoT Pressure Transmitter Sensor for Water Air Gas

Product Description

Wnk 4-20mA 0.5-4.5V I2C Iot Pressure Transmitter Sensor for Water Air Gas
Product Description WNK has introduced the new robust, small size and programmable pressure sensors of WNK80MA & WNK811 series, suitable for domestic drinking water system, air-conditioning,machinery and refrigeration plant engineering, hydraulic and pneumatic systems, process industries and environmental technology.
WNK80MA and WNK811 have various outputs including 4~20mA, SPI, I2C, 0~5V, 0.5~4.5V and etc. And OEM, ODM & customization service are available for this product.

Applicable media	Liquid, Gas
Pressure range	0-60bar/-1-700Bar
Pressure measurment	Gauge Pressure, Absolute pressure, Sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-5V
Accuracy(linearity,Hysteresis and Repeatability)	0.5%F.S.(Typical)
Power supply	24VDC/12VDC/5VDC
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Electrical connection	Parkard, Cable outlet, M12, mini DIN43650
Mechanical connection	G1/4, 1/8NPT,M12*1.5, customize
Housing material	304 stainless steel(inner core is 316 stainless steel)
Protection	IP65
Weight	95g

Features of WNK80MA Compact Pressure Transmitter:
1. Temperature range: -20 to 85ºC;
2. Wide operation temperature range -40~125ºC;
3. High performance ceramic capacitive pressure sensor;
4. Various 4~20mA/0.5~4.5V/1~5V/ 0~5V/ SPI/ I²C outputs available;
5. Small dimensions, dimension customizble;
6. Optional packard, M12, Small Hirschman connectors;
7. OEM, ODM, customization service available;

Detailed Technical Parameters:
Dimensions -- WNK80MA Compact Pressure Transmitter:

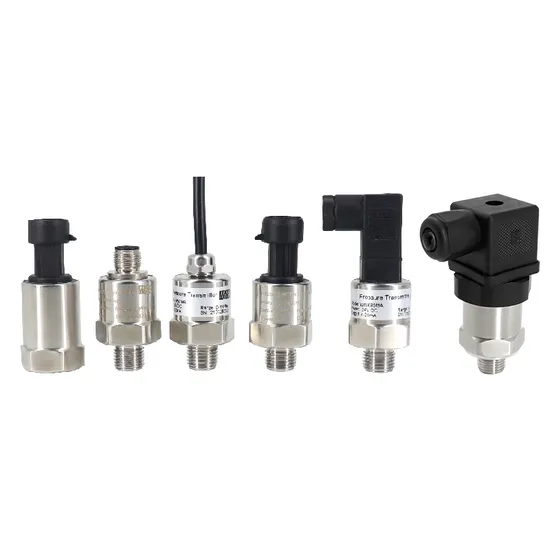

Product Show

Company Profile
FAQ
Q: Are you manufacturer or trading company?
A: We are 13-year professional manufacturer of Pressure/ Level/ Temperature transmitters with 4~20mA, Hart, Profibus & FF protocols, pressure sensors with SPI, I2C, 4~20mA, 0.5~4.5V and etc, and electronic switches. We provide high quality products with high competitive factory price.

Q: What's your quality control system?
A: As an ISO9001:2015 certificated manufacturer, we have strict quality control system, and each product is done fatigue testing, calibration, temperature compensation before shipment. High quality is guaranteed.

Q: Is there MOQ with your product?
A: We have no MOQ limits, 1pc for testing purpose is acceptable.

Q: Can we print our logo on the products? Do you provide customized products?
A: Yes, we can print your logo on our products; OEM, ODM&customization are welcomed.

Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 12 months after shipment, and our after-sales dpt will respond with your questions in 24hrs, remote instruction by PC network is always available.

Q: What is lead time of your product?
A: We are factory, our lead time is always within 7 working days for products without customization, but lead time for flange products is a little longer.

---
