Introduce

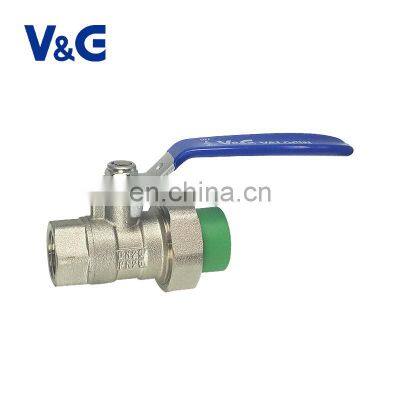

20 x 1/2" - 50 x 11/2" Valogin Nickel Plating 362.5 psi Brass Water PPR Ball Valve
Full flow DN20 x 1/2" - DN50 x 11/2" internal thread brass ball valves (brass ball & stem) fitted with Iron lever handle and PPR pipe are used for a variety of applications including oil & petroleum, and water. They are steam rated with PTFE stem packing. Pressure ratings are 25 bar/362.5 psi). EN13828 approval; Work normally from -20°C to 120°C under 25 bar or 362.5 psi; Ball & stem nickel-then-chrome plated for smooth operation.
Why Choose Us
WHY CHOOSE US ?
MARKET
Our valve export $80 million. Our sales service networks have been established in more than 60 countries and regions in the global market .
| AUTOMATION
70% of the capacity manufactu- red by automation.we achieve the target of 12 million pcs output monthly
| CERTIFICATION
Company- CNAS ISO9001 ISO18001
USA- UPC AB1953 NSF SA UL FM
EUROPE- CE ACS DVGW WRAS EN215 INIG
AUSTRALIA- WATERMARK AGA
|
R&D TEAM
We have a r&d team of over 30 people. If you have a sample, the research and development time is a week.
| PROJECTS
We have the stable supply cap- acity, the annual output value exceeds 100 million.
| SUPPLY ABILITY
We are suppliers of many large projects, such as the London 2012 Olympics.
|
Product Description
PRODUCT DESCRIPTION
|
| 1 | Body | Brass |
| 2 | Bonnet | Brass |
| 3 | Seat | PTFE |
| 4 | Ball | Brass |
| 5 | Stem | Brass |
| 6 | Packing | PTFE |
| 7 | Pressing cap | Q235 |
| 8 | Handle | Q235 |
| 9 | Check nut | 304 |
| 10 | Connect pipe | PPR |
| 11 | O-ring | Silica gel |
| 10 | Hexagon nut | Brass |
|
| | |
Dimensions
| DN20x1/2" | 15 | 96 | 75 | 75 |
| DN25 x3/4" | 20 | 96 | 81.5 | 82.32 |
| DN32 x1" | 25 | 112.5 | 95 | 101 |
|
| DN40 x1-1/4"5 | 32 | 144.5 | 113.5 | 117.43 |
| DN50 x1-1/2" | 38 | 144.5 | 135 | 130.2 |
|
Product Attributes
Item: Ball Valve
Size: 20x1/2" - 50x11/2"
Brass material: 59-3
Connection Type: pipe x Female BSP
Handle Material: IRON / AL
Handle Type: Lever
Stem Type: Blowout Proof
Stem Material: Brass
Seat Material: PTFE
Body Seal Material: PTFE
| Ball Material: Chrome Plated Brass
Valve Basic Body Material: Brass
Surface Treatment: Nickel Plating
Application: Can be used for oil & petroleum, and water
Max. Temp: 20°C to+120°C
Working Pressure: -20°C to +120°C
Port: All
Features: Thread Standard Diameter
Standards: EN13828 |
Packaging
Company Information
COMPANY PROFILE
Valogin is a corporation focusing on manufacturing high-quality and certified valve products for building-materials supermarkets, wholesalers, brands agents worldwide. We serves for plenty of corporations of Fortune global 500.
VIEW MORE
MANUFACTURING PROCESS
More product
RELATED PRODUCTS
FAQ
FAQ
1. Can I have a sample order for valve?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
|
2. Do you have any MOQ limit for valve order?
A: Low MOQ, 1pc for sample checking is available.
|
3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by sea. It usually takes 30 days to arrive. Airline shipping also optional.
|
4. How to proceed an order for valve?
A:
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
|
5. Do you offer guarantee for the products?
A: Yes, we offer 10 years warranty to our products.
|
>>
