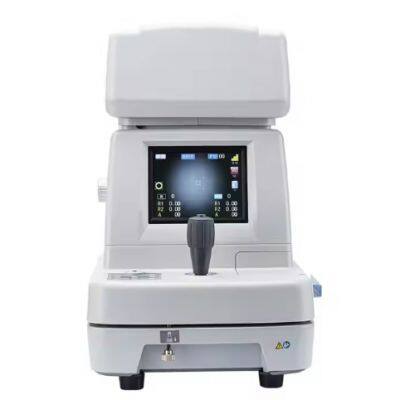

1. Enlarged measurement range: It allows you to make measurement over a broad measurement range. This means you can even measure extreme myopia eye. 2. Display screen: The CRT Monitor make the measurement results and setting image display on an easy-to-view screen. 3. AUTO PD measurement: The PD will be automatically calculated after measurement. 4. Easy, one-hand control: All operations, including UPDown, RightLeft, ForwardBackward and Start can be easily controlled with one hand through the control stick.FA-6100A without keratometer function, FA-6100AK with keratometer function.
Range of measurement
| Sphere
| -20~+20D(VD=12) 0.125D step
|
Cylinder
| -8~+8D 0.125D step
|
Axis
| 0°~180° (1°step)
|
PD
| 45~88mm,1mm step
|
Vertex distance
| 0mm, 12mm, 13.75mm
|
Min Pupil Size
| ø2.0mm
|
Keratometry
| Radius of curvature
| 5.0~10mm(increment: 0.01mm)
|
Corneal power
| 33.75~67.50D(when corner equivalent refractive index is 1.337) (increment selectable from 0.12, 0.25D)
|
Corneal astigmatism
| 0.0~8.00D(increment selectable from 0.12,0.25D)
|
Axis
| 1~180°(increment:1°)
|
Corneal diameter
| 2.0~14.0mm(increment: 0.1mm)
|
Memory of data
| 10 measure value for each right and left eye
|
Others
| Chart
| Auto-fog
|
Display
| 5.7″ TFT LCD
|
Print
| Thermal print
|
Power supply
| 110V~220V±10% 50Hz 60VA
|
Dimension
| 469mmX308mmX522mm
|
Weight
| ~15.5kg
|
