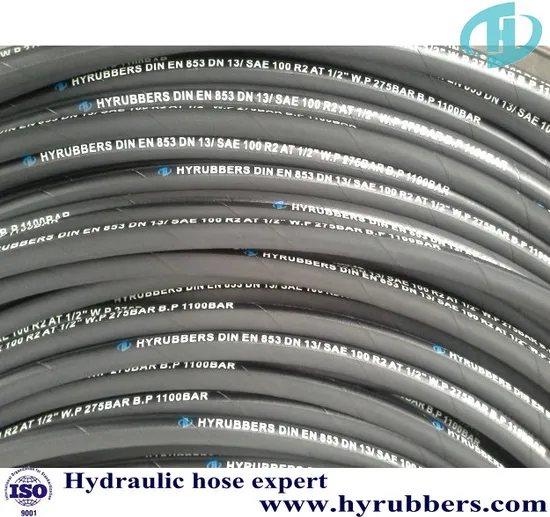

1sn 2sn 4sp 4sh Factory Produce Hydraulic Hose

Product Description

Hyrubbers Co., Ltd is manufacturer of various hydraulic hose in north of China , We have been in this line for over 10 years and have many customers and distributors in USA , Italy , Russia , Ukraine , Brazil ,Chine ,Argentina ,Peru , Iran , UAE , Egypt ......
Our Main Products:
1 HYDRAULIC HOSE
SAE R1AT/DIN 1SN
SAE R2AT/DIN 2SN 1ST/1SC 2ST/2SC
4SH/4SP
R13/R15/R16/R17/R14
R3/R6/R7/R8
Drilling Hose (38mm~150mm)
2 INDUSTRIAL HOSE
Water / Air Hose smooth surface , warpped surface
Fuel Hose
Gas Hose
Oxygen Hose
3 ACCESSORIES (valves, quick couplings, clamps)
Service:
1. )Excellent quality with most effective price
2. )Fast delivery time and good service after sale.
3. )Free samples to test quality.
4. )You can find us on the two session of the Canton fair every year.

DN	Hose I.D		Wire O.D	Hose O.D	Working Pressure		Burst Pressure		Minimum Bend Radius	Weight	Length
	inch	mm	mm	mm	MPa	psi	MPa	psi	mm	kg/m	metres
5	3/16	4.8	9.5	11.8	25.0	3630	100.0	14280	89	0.19	50/100
6	1/4	6.4	11.1	13.4	22.5	3270	90.0	12840	102	0.21	50/100
8	5/16	7.9	12.7	15.0	21.5	3120	85.0	12280	114	0.24	50/100
10	3/8	9.5	15.1	17.4	18.0	2615	72.0	10280	127	0.33	50/100
13	1/2	12.7	18.3	20.6	16.0	2320	64.0	9180	178	0.41	50/100
16	5/8	15.9	21.4	23.7	13.0	1890	52.0	7420	203	0.45	50/100
19	3/4	19.0	25.4	27.7	10.5	1530	42.0	6000	241	0.58	50/100
25	1	25.4	33.3	35.6	8.8	1280	35.0	5020	305	0.88	50
32	1 1/4	31.8	40.5	43.5	6.3	920	25.0	3600	419	1.23	20/40
38	1 1/2	38.1	46.8	50.6	5.0	730	20.0	2860	508	1.51	20/40
51	2	50.8	60.2	64.0	4.0	580	16.0	2280	635	1.97	20/40

---
