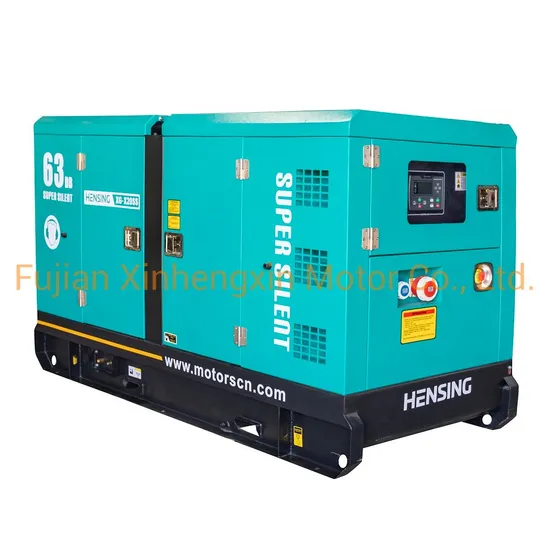

Mute Type Cummins 20kVA Diesel Electric Generator Set 65dB

Product Description

Mute Type Cummins 20KVA Diesel Electric Generator Set 65db
Detailed product description:
1) Rated output: 8 - 1000kW / 10kVA - 1250kVA
2) Rated voltage: 400 / 230V, 380 / 220, 220 / 120
3) Rated frequency: 50 / 60Hz
4) Power factor: 0.8.
Engine: Cummins generator engine
1)Cooling method: closed water cooling or air force cooled
2)Starting method: electric start.
3)Rated speed: 1,500 / 1,800rpm
4) Noise level: 65dB to 75dB 7 meter away
Alternator:
1) Brand: Leroysomer or Our brand(ST/STCseries,TFW)
2) Rated output: 20 -1000kW / 25kVA -1250kVA
3) Rated voltage: 400 / 230V according to your requested
4) Rated Frequency: 50 / 60Hz
5) Power factor: 0.8
6) Phase: 3-phase, 4-wire
7) Connection: Y or other type connection
8) Rated speed: 1,500rpm / 1,800rpm
9) Excitation: harmonic excitation or phase compound or brushless
11) Voltage regulation: automatic
12) 1.0% voltage regulation (max.) in static conditions
13) Protection class: IP 22 or IP23
14)Connect with engine:Direct coupled with flywheel
Control panel:
1) The generator control panel is manufactured locally by
2) The panel is provided with:
a) Standard engine instrumentation
b) Voltmeter with selector switch
c) Ammeter with selector switch
d) Frequency meter
e) Current transformers
f) Instrument fuses duly wired and ferruled
g) Mcb of suitable rating with overload and short circuit protection
h) With AMF control panel or with ATS (automatic transfer system)
i) With EPA certification

Genset Type Genset Spec. COS=0.8 Engine Specification Alternator Dimension (cm) Weight (kg) Prime Power Standby Power Type Cylinder Bore x Stroke (mm) Power (kw) Fuel Cons. (L/H) Brand Type KVA KW KVA KW Fuel Lub-oil C20 25 20 27.5 22 4B3.9-G2 4L 102 x 120 24 7 0.056 170x70x115 750 C30 37.5 30 42 33 4BT3.9-G2 4L 102 x 120 36 8 0.056 170x70x115 900 C36 45 36 50 40 4BTA3.9-G 4L 102 x 120 55 9 0.056 173x70x115 1070 C50 63 50 70 55 4BTA3.9-G 4L 102 x 120 55 11.3 0.056 173x70x115 1100 C70 90 72 100 80 6BT5.9-G 6L 102 x 120 100 16.2 0.093 218x82x135 1200 C80 100 80 110 88 6BT5.9-G 6L 102 x 120 100 18 0.093 218x82x135 1220 C100 125 100 138 110 6BTAA5.9G 6L 102 x 120 132 24 0.124 230x82x135 1400 C120 150 120 163 130 6BTAA5.9G 6L 102 x 120 132 28.8 0.124 230x82x135 1440 C150 188 150 203 162 6CTA8.3G2 6L 114 x 135 180 40 0.162 245x86x143 1600 C160 200 160 225 180 6CTAA8.3G 6L 114 x 135 200 45 0.168 256x88x155 1700 C200 250 200 275 220 NTA855-G1 6L 140 x 152 265 48 0.25 285x97x158 3100 C200 222 200 275 250 NT855-GA 6L 140 x 152 250 48 0.25 285x97x158 3100

Accessories
1) Standard accessories
Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, Non-return valve,Shock Pad,exhaust silencer, battery and connecting wires, Standard tools kit, operation manual and document.
2) Optional accessories
Engine coolant and oil heater, cooling for heat exchanger, communication interface, battery charger by main supply, ATS and paralleling system, soundproof canopy
Warranty:
Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, Hensing Power will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Hensing provides cost spare parts maintenance of gensets
Our Advantages
1. High pressure pipes for diesel input-outlet
2. Stronger heavy duty rubber anti-vibration mountings
3. All base fuel tank Baking paint
4. All canopy powder coating (Powder type - 3 years durable, longer service life and less color fading)
5. Maintenance free battery and high quality battery charger
6. High standard wiring and brands (Chint/Delixi) relays, indicators, fuse breaker, meters etc.
7. Non-return Valve equipped
8. Turbo charger protection, moving parts protected and other CE standards (depends on required)
9. ONE Hour Testing for all genset (0%-25%-50%-75%-100%-110% loading)
10. Make sure the Fastest Delivery Time
11. Reliable Quality and Aftersale Services as committed
12. Excellent Quality Control and Pre-shipment Inspection
(All base frame, fuel tank, canopy, ATS cabinets etc are produced in Hensing factory zone to avoid any out-off-controlled quality problems.
FAQ (FREQUENCY ASKED QUESTION)
Q: What's your warranty period?
A: Our payment terms is 1 year or 1000 running hours whichever comes first. But based on some special project, we can extended our warranty period.
Q: Does your generators has global warranty?
A: Yes, most of our products like Cummins, , Doosan power generator enjoy the global warranty service. And the alternator we use like Leroysomer, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service.
Q: Do you accept OEM/ODM service?
A: Yes, we can accept OEM.
Q: What's your payment terms?
Answer: We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms .
Q:What is your company's available production capacity?
A: 700 sets of diesel generator set per month and 2000 pieces of alternators per month.
Q: What's your delivery time?
A: Our normal delivery time is 20-25 working days. But if your order is some special engine and alternator, then the delivery time is longer.
Q.Can you offer parts to us if we need?
A:Yes,we can offer parts to you at any time,not limited in warranty time.usually the parts can be sent out during 3-5days.

---
