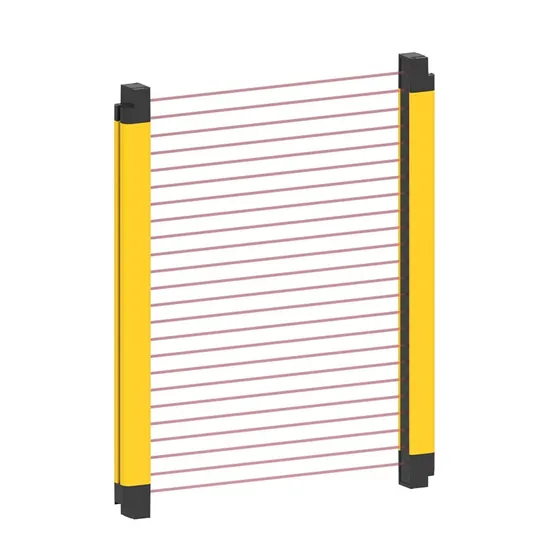

Economical Safety Light Curtain Sensor with Infrared

Product Description

Product Description
Product Advantages
1:Adopting line synchronization mode with safe and reliable perform ance.
2:Detecting fingers,hands and arms in different sizes.
3:A wide range of dimensions, protection heights and detection methods are available.
4:Can be customized according to various non-standard requirements of customers.
Product Feature
1:Strong anti-electromagnetic interference
2:Class 4 safety grating design standards
3:Satisfying different installation scenarios,suitable for a variety of working environments
Technical specifications

Model	BKL40-T0406NC
Cross-Sectional Area	30*30mm
Number Of Optical axes	4 axes
Protection Hight	120mm
Curtain Hight	170mm
Protection Distance	0.1~6m
Optical Axis Spacing	40mm
Minimum Detected Object	Φ45
Working Voltage	12~24V DC±10%
Current Consumption	<200mA
Power Consumption	3~8W
Output Mode	NPN
Synchronization Type	Light synchronization,Line Synchronization
Response Time	≤10ms
Light Source	Infrared LED(modulated)
Circuit Protection	Reverse polarity protection,overload protection,output short circuit protection
Ambient Temperature	-15ºC~+55ºC(be careful not to condense or freeze)
Ambient Humidity	35~85%RH
Anti-Interference Ability	10000 Lux(angle of incidence≥5°)
Insulation Resistance	Above 10MΩ,based on the high-resistance meter of DC500V
Vibration Resistance	10~150Hz,1.5mm double amplitude,2 hours each in X,Y,Z directions
Impact Resistance	Acceleration: 500m/S²(50G),X,Y,Z 3 times in each direction
Protection Degree	IP65
Material	Aluminum alloy
Wiring Mode	M12 connector with leads
Accessory	Right-angle retention mechanism

Size structure and Circuit diagram
Factory environment
Part of the process
FAQ Q : What is the MOQ? A : 1pcs Q : Can I customize a special sensor? A : Sure Q : Can I get a lower price if I order large quantities? A : Yes, Cheaper prices with bigger size orders Q : Can I get a sample? A : Of course, but you need to pay the minimum sample fee Q : When will you ship my order? A : 1 day shipping guarantee for stock item and 3-4 weeks for non-stock items. Q : How about the quality guarantee period ? A : Our warranty period is one year since from shipping date. Q : Can I add or delete items from my order if I change mind? A : Yes, but you need to tell us asap, if your order has been done in factory production line, we cannot change it. Q : How can you guarantee the production quality? A : The quality of products has passed UL&CE&ISO140001&IS09001certification. production plant have 20+ years professional sensor manufacturing history and products have been supplied to many 500 companies and continue to purchase

---
