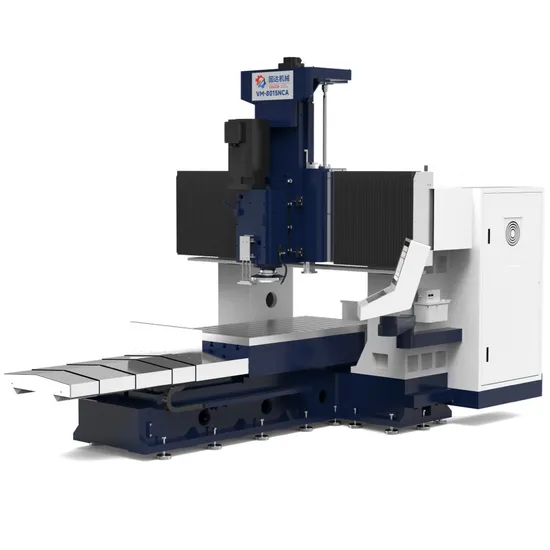

CNC High Precision Gantry Type Milling Machine Double Column Vertical Milling Machine

Product Description

Main Features
GooDa CNC Gantry Milling Machine is designed for face milling of two surfaces of pre-squared steel plates and non-ferrous metal materials in the mold & die industry.
It features a bridge-like structure (the gantry), which consists of a horizontal beam supported by vertical columns, allowing it to process metal workpieces with high precision and stability.
The machine is controlled by computer numerical control (CNC) technology, allowing for automated and precise milling operations.
Main Functions
-Automatically positioning, measuring, processing, and removing chips;
-Full-travel wrapped ram;
-Ra≤0.8, tolerance ≤0.03/100mm;
-Customizable with 2 spindles for both roughing & finishing;
-Optional belt or gear-driven spindle;
-Optional semi-closed sheet metal;
-Optional CNC system;
-Customization as required.
Product Parameters

Model	VM-8015NCA
Category	Attribute	Value	Unit
Processing capacity	Max. machining size(W*L)	800*1500	mm
	Distance between two columns	1300	mm
	Max. machining height	290/350/450(0ptional)	mm
Worktable	Worktable size	800*1500	mm
	Magnetic chuck size	800*1500	mm
	Max. load capacity	4000	KG
	T-slot	22*140	mm
Gear-driven spindle	Spindle motor power	22	kW
	Spindle taper	BT50(7:24)	/
	Spindle speed	50-500	rpm
	Cutter diameter	Φ250	mm
Feed speed	X-axis feed speed	6000	mm/min
	Y-axis feed speed	6000	mm/min
	Z-axis feed speed	3000	mm/min
Motor power	X/Y/Z axis	2.3/1.3/1.3	kW
Size and weight	Machine weight	About 9000	KG
	Machine size(L*W*H)	4650*2700*3300	mm

Core Components
Spindle
High-speed and precise operations for metalworking
Linear Guideway
Stability, precision, and durability in automated systems
Ball Screw
Smooth and accurate movement in machinery
Servo Motor
Excellent speed control and torque performance
Company Profile
Factory Display

Certifications

FAQ
Q1. What is your minimum order quantity and warranty?
A1: MOQ is one set, and the warranty is 12 months.
Q2. What CNC system do you use?
A2: FANUC, SIEMENS, MISTSUBISHI, etc. It depends on your choice.
Q3. When is the delivery time?
A3: For conventional machines, we will deliver them within 30-45 working days after receiving your deposit; For special machines, the delivery time may be longer, and we will provide you with an updated timeline accordingly.
Q4. What is the packaging for the machines?
A4: Packaging: PE bag cover (inside), plywood box, and steel beam frame. Other packing methods are also available.
Q5. How can I select the most suitable machine?
A5: Please let us know your machining requirements or the machine size, and we can recommend the best model for you.
Alternatively, you can choose the exact model yourself. You can also provide us with the product drawings, and we will help you select the most appropriate machine.
Q6. What are your trade terms?
A6: FOB, CFR, CIF, or other terms are all acceptable.
Q7. What are your payment terms?
A7: We accept T/T with a 30% deposit when placing the order and the remaining 70% balance before shipment.
We also accept an irrevocable letter of credit (LC) at sight.
Production will begin once we receive the advance payment. When the machine is ready, we will send you pictures. After receiving the balance payment, we will proceed with the shipment.
Q8: Are you a manufacturer or a trading company?
A8: We are a combined manufacturing and trading company, specializing in the innovative development and production of machine tools, with extensive experience in global exports. We warmly welcome you to visit our factory.
Q9: Can you provide OEM services?
A9: Absolutely. We are happy to create a customized plan based on your requirements and offer the best service to meet your needs.
Q10: How can we receive training for the machines?
A10: You can send your team to our factory for free training, or we can arrange for one of our engineers to travel to your location for on-site training.

---
