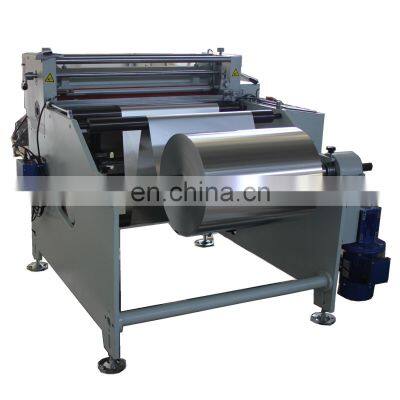

aluminum foil roll cutting machine (sheet cutter)

Product Description

Product Description
aluminum foil roll cutting machine (sheet cutter)
ModelDP-800
Voltage380V 50HZ, 3 PHASE
Power4HP
N.W. 1500KG
Sheeting Length 0.1-9999.9mm
Sheeting width1-800mm
Sheeting precision±0.05mm
(0-180mm)Sheeting speed 60(cut/min)
Machine size1850x1700x1350mm
unwinding shaft diameter3 inch
unwinding diametermax 600mm
Functional Characteristics:
Machine adopts imported PLC overall control with touch screen display, simple and ease of operation. Fast cutting speed, high precision.
Purpose:
It is applicable for the cutting of PVC film, insulation sheet, Mylar, foam, industrial tape, electronic tape and various inch setting, entirely broken and partially broken electronic materials.
Model360 Sheet cutter500 Sheet cutter
Max Feeding Width ( mm )360500
Main Engineer Power ( w )150400
Speed ( t/m )110110
Size ( mm )900*800*14001200*900*1280
Weight ( kg )300400
Precision ( mm )±0.10±0.10
Power380V 50HZ220V 50HZ

advantage
Servo motor control ---more precision then Stepper motor control , so we already Eliminated stepper motor machine
PLC ----- use famous brand MITSUBISHI which you will easily maintenence in your local place
Machine body ----- 20mm thickness steel wall , it is very solid that to make sure machine stable when running
PULLING ROLLER ---- Thick PU rubber coated and won't scratch the material
Guiding roller ------- Aluminum shaft be polished and hard anodized , very smooth and never harm material
Cutting Blade ----special material to make sure the cutter use very very long time and cutting material perfect edge at cutting part
Safety light---- have safety light at cutting blade , and sensor at it , to protect the operator safety
12 month electronic parts guarantee after machine arrived your place
