CNC Double Column Gantry-Type Universal Milling Machine X2010 X2012 X2014

Product Description

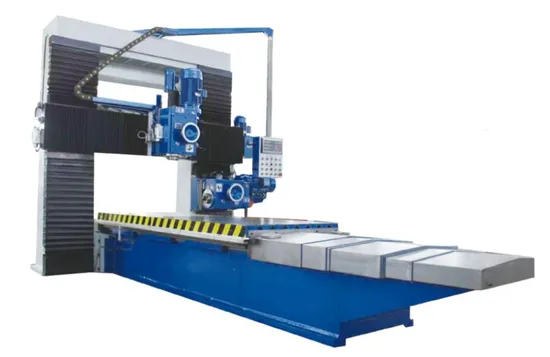

Gantry-Type Milling Machine X2010/X2012/X2014

Air tight cover
With DRO
Pneumatic tool locking mechanism
Specification:

Model No.	X2010	X2012	X2014
Item No.
Specifications
Max. Travel (LxWxH)	2000/3000/4000 x1300x1000 mm	2000/3000/4000 x1400x1000/1200 mm	2000/3000/4000 x1800x1000/1200 mm
Distance between columns	1440 mm	1600 mm	1920 mm
Table size(LxW)	2000/3000/4000x1000 mm	2000/3000/4000x1250 mm	2000/3000/4000x1400 mm
Table feeding speed(Feed Rapid travel)	20-360	25-450	25-450
	1050	1300	1300
Spindle
Spindle taper	7:24 ISO50	7:24 ISO50	7:24 ISO50
Spindle speed step	82-505 r/min	82-505 r/min	82-505 r/min
Swivel angle of milling head	± 35°	± 35°	± 35°
Feed speed of milling head	(Along the cross rail):65/320/890 mm (Side milling head):50/265/730 mm
Other
Power of spindle motor	7.5 kw	7.5 kw	7.5 kw
Power of table motor	4/5.57.5 kw	5.5/7.5(3000.4000) kw	5.5/7.5(3000.4000) kw
Overall size(LxWxH)	4550/7000/9000x3200x2550mm	5000/7000/9000x3550x2950/3150mm	5000/7000/9000x3550x2950/3150mm

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1).12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
