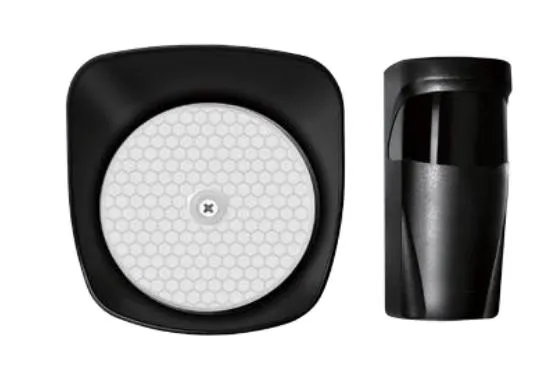

Reflective Photocell Sensor/Infrared Sensor for Roller Shutter Doors Sh-pH01

Product Description

ShareH Photocell Infrared Sensor SH-PH01
Product Description Input Voltage : AC: 9V~ 24V (AC Frequence: 50HZ/60HZ, Imax =35mA) : DC: 12V~24V (Imax =35mA) Working current : 1) <35mA@12VDC 2) <19mA@24VDC Detect distance : 1) ≥15m (with reflector type: XUZC80) 2)≥10m (with reflector type: TD-05) Blind zone : ≤ 0.45m Reaction time : about 30mS Ambient light intensity : Max.5000lux Infrared light spec. : 1) Wave length: 740nm 2) Type of lighting: Visible Red light Output Port Loading : 1) AC 0.3A/120VAC 2) DC 0.8A/30VDC Working temperature : -25ºC ~ +70ºC Storage temperature : -35ºC ~ +80ºC Product Size(LxWxH) :100 x 40 x 35mm Lens size :D82 x H8.3mm Product weight :about 60g Usage : Lifting doors, revolving doors, sliding doors, wall security protection, window and balcony security, warehouse security, parking lots and other outdoor security sites.
FAQ
What types of roller shutter motors do you manufacture? We manufacture a wide range of roller shutter motors, including tubular motors from 25mm to 92mm, central motors 60mm and 76mm, and side motors 300kgs to 2000kgs suitable for various types of roller shutters, also shutter accessories like switch, remotes. What are the main features of your roller shutter motors? Ou roller shutter motors have been more than 10years experience.we are designed for durability, reliability, and ease of installation. They are equipped with advanced technology for smooth operation, low noise levels, and enhanced security features. Can you customize roller shutter motors according to our specific requirements? Yes, we offer customization services to meet the unique needs of our customers. Whether you require specific dimensions, motor power, or control options, we can tailor our products to fit your requirements. What kind of warranty do you provide for your roller shutter motors? Our tubular motor has 3 year of warranty. We stand behind the quality of our products and offer a comprehensive warranty on all our roller shutter motors.

---
