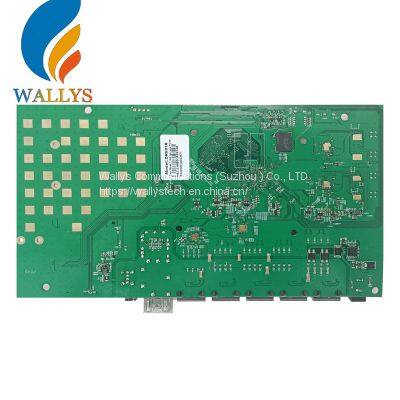

Wallystech wifi6 router DR6018C V01/Quaclomm IPQ6010/IPQ6018 OpenWRT QCN9074 WiFi 6E Card 2.4G&5G
Wallys has been specializing in product design & manufacturing and delivering superior OEM/ODM services in wireless communications. Dedicated to innovative designs for wireless modules. Customization is also supported, We have 90% of the world market, We're a supplier to Facebook. (Web:wallystech com)
Skype/EMAIL:sales@wallystech.com
APPLICATIONS
+ Profi WiFi hotspot coverage
+ Commercial radio coverage
+ Hotel Wireless application
+ Country coverage
+ Internet for passengers (bus, train, plane, …)
+ Security Surveillance
+ Some special scene application
+ Heavy-duty industrial environment use
DR6018C V01
Support OpenWRT, Support:QUECTEL RM500Q-GL&Support:QCN9074 WiFi 6E Card
Support OpenWRT IPQ6010 802.11ax 2x2 2.4G&5G 2.5Gbps Ethernet Port SFP
Qualcomm-AtherosIPQ6010
Quad-core ARM 64bit A53 @1.8GHz Processor
1GB DDRL3L System Memory
32MB NOR Flash, 256MB NAND Flash
Supports Dynamic Frequency Selection (DFS)
2x2 On-board 2.4GHz radio, up to 573Mbps physical Data Rate
2x2 On-board 5GHz radio, up to 1201Mbps physical Data Rate
Support: QUECTEL RM500Q-GL
Support: QCN9074 WiFi 6E Card
Parameter
| Rating
| Unit
|
Supply Voltage
| 24V~48
| V
|
Operating Temperature Range
| -40 to +70
| ºC
|
Storage Temperature Range
| -45 to +105
| ºC
|
Operating Humidity Range
| 5 to +95 (non-condensing)
| %
|
Symbol
| Parameter
|
CPU
| Qualcomm-Atheros IPQ6010
|
CPU Frequency
| Quad-core ARM 64 bit A53 @1.8 GHz processor
|
System Memory
| 1GB (2x 512MB) DDR3L 16-bit interface with 32-bit memory bus design
|
Ethernet Port
| 1 x 1Gbps Ethernet Ports & POE3 x 1Gbps Ethernet Ports , 1x 2.5Gbps Ethernet Port
|
SFP Port
| 1x SFP port
|
NGFF Slot
| M.2 (NGFF) “E Key” Socket with MiniPCIe 3.0
|
SD Card Slot
| 1x SD Card Slot
|
USB /header
| 1x USB 2.0 Port
|
POE
| 24V~48V passive POE/Active POE(Suport 802.3bt)
|
DC Jack
| 24V power supply
|
LED header
| FFC/FPC Connector
|
Serial Port
| 1x Serial Port 4 Pin Connector
|
Wireless
| On-board 2x2 2.4GHz MU-MIMO OFDMA 802.11b/g/n/ax, max 23dBm per chain
On-board 2x2 5GHz MU-MIMO OFDMA 802.11a/n/ac/ax, max 20dBm per chain
4 x MMCX Connectors
|
Bluetooth
| CSR8811 BLE 4.2
|
Nor Flash
| 32MB
|
Nand Flash
| 256MB
|
DDR
| 256MB~512MB
|
Dimension
| 185mm x 116mm
|
| Radio TX Specifications(5180MHz-5825MHz)
|
Operating Mode
| Data Rate
| Power
| Tolerance
|
1 Chain
| 2 Chains
|
5Ghz 802.11ax HE20
| MCS0
| 20dBm
| 23dbm
| ±2dB
|
MCS1
| 20dBm
| 23dBm
| ±2dB
|
MCS2
| 20dBm
| 23dBm
| ±2dB
|
MCS3
| 20dBm
| 23dBm
| ±2dB
|
MCS4
| 19dBm
| 22dBm
| ±2dB
|
MCS5
| 18dBm
| 21dBm
| ±2dB
|
MCS6
| 17dBm
| 20dBm
| ±2dB
|
MCS7
| 16dBm
| 19dBm
| ±2dB
|
MCS8
| 15dBm
| 18dBm
| ±2dB
|
MCS9
| 14dBm
| 17dBm
| ±2dB
|
MCS10
| 13dBm
| 16dBm
| ±2dB
|
MCS11
| 13dBm
| 16dbm
| ±2dB
|
5Ghz 802.11ax HE400
| MCS0
| 20dBm
| 23dbm
| ±2dB
|
MCS1
| 20dBm
| 23dBm
| ±2dB
|
MCS2
| 20dBm
| 23dBm
| ±2dB
|
MCS3
| 20dBm
| 23dBm
| ±2dB
|
MCS4
| 19dBm
| 22dBm
| ±2dB
|
MCS5
| 18dBm
| 21dBm
| ±2dB
|
MCS6
| 17dBm
| 20dBm
| ±2dB
|
MCS7
| 16dBm
| 19dBm
| ±2dB
|
MCS8
| 15dBm
| 18dBm
| ±2dB
|
MCS9
| 14dBm
| 17dBm
| ±2dB
|
MCS10
| 13dBm
| 16dBm
| ±2dB
|
MCS11
| 13dBm
| 16dbm
| ±2dB
|
5Ghz 802.11ax HE80
| MCS0
| 20dBm
| 23dbm
| ±2dB
|
MCS1
| 20dBm
| 23dBm
| ±2dB
|
MCS2
| 20dBm
| 23dBm
| ±2dB
|
MCS3
| 20dBm
| 23dBm
| ±2dB
|
MCS4
| 19dBm
| 22dBm
| ±2dB
|
MCS5
| 18dBm
| 21dBm
| ±2dB
|
MCS6
| 17dBm
| 20dBm
| ±2dB
|
MCS7
| 16dBm
| 19dBm
| ±2dB
|
MCS8
| 15dBm
| 18dBm
| ±2dB
|
MCS9
| 14dBm
| 17dBm
| ±2dB
|
MCS10
| 13dBm
| 16dBm
| ±2dB
|
MCS11
| 13dBm
| 16dbm
| ±2dB
|
| Radio TX Specifications(2412MHz-2482MHz)
|
Operating Mode
| Data Rate
| Power
| Tolerance
|
1 Chain
| 2 Chains
|
2.4Ghz 802.11ax HE20
| MCS0
| 23dbm
| 26dbm
| ±2dB
|
MCS1
| 23dBm
| 26dBm
| ±2dB
|
MCS2
| 23dBm
| 26dBm
| ±2dB
|
MCS3
| 23dBm
| 26dBm
| ±2dB
|
MCS4
| 23dBm
| 26dBm
| ±2dB
|
MCS5
| 23dBm
| 26dBm
| ±2dB
|
MCS6
| 23dBm
| 26dBm
| ±2dB
|
MCS7
| 22dBm
| 25dBm
| ±2dB
|
MCS8
| 21dBm
| 24dBm
| ±2dB
|
MCS9
| 21dBm
| 24dBm
| ±2dB
|
MCS10
| 18dBm
| 21dBm
| ±2dB
|
MCS11
| 17dbm
| 20dbm
| ±2dB
|
2.4Ghz 802.11ax HE40
| MCS0
| 23dbm
| 26dbm
| ±2dB
|
MCS1
| 23dBm
| 26dBm
| ±2dB
|
MCS2
| 23dBm
| 26dBm
| ±2dB
|
MCS3
| 23dBm
| 26dBm
| ±2dB
|
MCS4
| 23dBm
| 26dBm
| ±2dB
|
MCS5
| 23dBm
| 26dBm
| ±2dB
|
MCS6
| 23dBm
| 26dBm
| ±2dB
|
MCS7
| 22dBm
| 25dBm
| ±2dB
|
MCS8
| 21dBm
| 24dBm
| ±2dB
|
MCS9
| 21dBm
| 24dBm
| ±2dB
|
MCS10
| 21dBm
| 24dBm
| ±2dB
|
MCS11
| 19dbm
| 22dbm
| ±2dB
|
