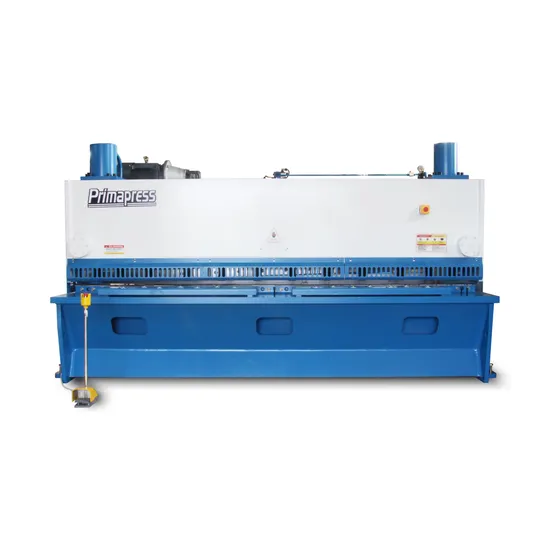

Automatic CNC Hydraulic Guillotine Shearing Machine Shear Cutter Sheet Metal 8*3200

Product Description

QC11K Hydraulic shearing machine E21s Control
Videos in Youtube:
https://youtu.be/TmlPl_R2jKs
1,Technical specification for QC11K-8*3200

Model	Cutting thickness	Cutting length(mm)	Backgauge range	Material strength(KN/CM)	Shear angle	Stroke(/min)	Power(KW)	Machine size(mm)
8*3200	8mm	3200	20-500	≤450	0.5-2°	12-21	7.5	3900*1700*2150

2,Features of this machine
1.The second generation of shear.
2.Welded steel plate construction, heating to eliminate stress,with high strength and good rigidity.
3.Advanced integrated hydraulic system with and excellent reliabitity quality.
4.Rapidly,accurately and conveniently adjusting the blade clearance by motor
5.The adjustable rake angle can minimize plate deformation.
6.As the cutting beam has been designed in inner-inclined structure,it is easy for plates to fall down and the accuracy of products can be also guaranteed.
7.Shearing in sections,shadow-line cutting.
8.Counter for the motorized back gauge.
9.Back support device (optional).
3.Machine key components list

No.	Name	Brand	Location
1	Motor	Siemens	Germany
2	Electrics	SCHNEIDER	France
3	Oil Cylinder	Wuyang	Anhui, China
4	Seal ring	NOK	Japan
5	Pump	Lifeng	China
6	Hydraulic system	USA Sunny	Germany Bosch optional
7	Valves	USA Sunny	Germany Bosch optional
8	Controller	Estun E21	China Estun
9	Blade	6CrW2Si	Jinshan, Shanghai
Equipment's working environment: 2.1 Power supply:3Ph AC 220V ± 10% 60HZ ± (optional to site) 2.2 ambient temperature:-10 ºC ~ 45 ºC 2.3 Relative Humidity: ≤ 85% The back gauge structure(our patent)

We can also change the components according to your demand.
4.Attachment With the machine

No	Items	parameters	remarks
1	Upper Down blade	2	set
3	Bolt &Nut	8
4	feet nut washer	4
5	Allen wrench&Grease Gun	1 set	3 to 14 mm (maintenance tool)
6	technical documents	certificate of the product, including operation and maintenance manual, electrical, hydraulic schematics, purchased parts inventory, basic maps, packing list.

Q: How to get an accurate quotation from us?
A: Please provide us with detailed information of material, max thickness and max width.
Q: Can you provide OEM service?
A: Yes, we can. Your design is accepted and your own logo can be used on the machine.
Q: How much is the shipping cost from China to your country?
A: We can send the machine to your port or door address by sea. Please tell us your nearest port or address and zip code. We have reliable shipping agents to ensure safe, convenient and on-time delivery.
Q: Do you accept payment by L/C?
A: Yes, usually our payment is 30%+70% T/T, payment by L/C is also acceptable
Q: How to operate this machine?
A: Video line from our factory or we send you video directly.
Q: How about debugging service?
A: We can provide debugging service, buyers need to afford the air ticket.
Q: Do you provide teaching and training?
A: Training in supplier factory.

---
