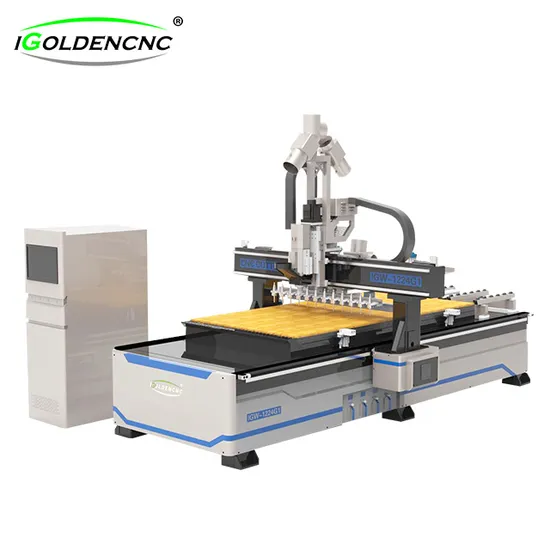

1325 2030 Atc Wood Door Cutting Machine Woodworking CNC Router Engraving Cabinet Machinery Nesting CNC

Product Description

2030 ATC wood door cutting machine woodworking cnc router engraving cabinet machinery nesting cnc
Features:
This 3 axis 1325 wood cnc router cutting machine(nesting cnc machine) is a cost-effective intelligent CNC cutting center, which integrates automatic positioning, optimized cutting, punching, slotting and engraving, so as to maximize the use efficiency of labor.

Name:	1325 Cnc Nesting Machine
Working area :	1300*2500mm (Customized size)
Spindle :	ATC 9KW HQD air cooling spindle
Inverter:	Fuling
Motor :	Dorna servo motors
Driver :	Dorna servo driver
Control System :	Taiwan LNC control system
Table :	Double layer Vacuum table + position cylinder + secondary dust collection + Pusher system
Oil lubrication :	Automatic lubrication
Limit:	Omron limit
Transmission :	XY axis Taiwan helical rack Z axis Taiwan ball screw
Rail :	X,Y,Z axis Germany Square guide rail
Screw :	Z axis TBI ball screw
Bed:	Thick steel welded big square tube
Gantry :	Strong frame
Pillars :	Steel pillar(Suitable for high-end customers)
Cabinet :	Independent cabinet
Voltage :	3 phase/380V
Color :	As requirement
Tools :	1box (10 pieces)

Machine in Workshop:
Show details:
Applications of cnc wood router machine:
(1) Cabinet, wardrobe, bank office furniture, computer desk, children's furniture, panel furniture, office furniture;
(2) Decoration with hollow lattice, soft bag background wall production;
(3) Panel furniture cutting, slotting and hole arranging.
Company information: iGoldencnc group is one of manufacturing and research and development of the company that focus on CNC engraving machine and cutting machine for many years since 2002. Located in Jinan,shandong province,covers the area of 6000 square meters.
Our products have been certified by various parties, including CE, ISO9001 and FDA. Products can meet different needs of customers. Advanced technology, experienced engineers and first class service are our fundamental guarantee.

---
