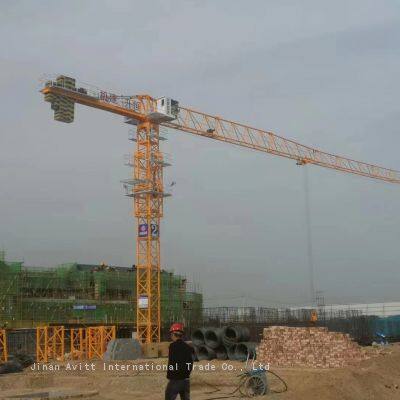

5tons QTZ63(5013) Topless Tower Crane Split Mast Sections 30m Free Height Max. Load

Product Details

Product Description

Product Description
5tons QTZ63(5013) Topless Tower Crane Split Mast Sections 30m Free Height Max. Load
Performance parameters and technical indexes reach both domestic and international advanced level.
2. • Max. jib length: 50m;
3. • Max. lifting capacity 6t;
4. • Max. hoisting capacity at jib tip:1.3t;
5. • Rated lifting moment: 630 Kn.m;
6. • Max. freestanding height: 30m; Max. working height of anchored crane: 150m

Rated lifting moment (kN.m)		800
Lifting height (m)		Rope fall	Free-standing stationary crane		Anchored crane
		α＝2	30		140
		α＝4	30		70
Working radius (m)		Max. working radius		50
		Min. working radius		3
Max. lifting capacity (t)		5
Hoisting mechanism	Rope fall	α＝2		α＝4
	Speed (m/min)	0-80		0-60
	Lifting weight (t)	1.5	3	3		6
	Power (kW)	26
Tolleying mechanism		Speed (m/min)		0-40
		Power (kW)		4
Slewing mechanism		Speed (r/min)		0.6
		Power (kW)		4*2

Technical features:
a. Speeds of trolleying and slewing mechanisms are high, good speed adjusting performance, excellent stability.
b. Anti-broken wire rope device and anti-broken shaft device
c. Light structure, good stability, convenient transportation; Mast sections are SAW welding, safe and reliable. Advanced mechanisms, equipped with various safety devices, mechanical or Mechatronics products work in wretched conditions to keep tower cranes work well.
d. Advanced electronic appliances, such as Schineider.
e.. Equipped with excellent safety devices produced by world-class technology, including weight limiter, moment limiter, height limiter, radius limiter, slewing limiter, slewing and trolleying brakes.

---
