High Production Concrete Reinforcing Steel Provided PLC Wire Mesh Welding Machine 3000mm

US$16,000.00
1-4 sets
US$15,000.00
5+ sets

Basic Info.

Model NO.
HWJ3000
Warranty
1 Year
After-Sales Service
Overseas Service Provided
Voltage
380V 50Hz 3phase/Customized
Condition
New
Weight (Kg)
9500
Local Service Location
Russia
Machine Type
Wire Mesh Welding Machine
Control System
PLC+Touch Screen
After-Sales Service Provided
Video Technical Support
Color
Customized Colors
Wire Diameter (mm)
5 - 12 mm
Showroom Location
None
Warranty of Core Components
1 Year
Mesh Width
2500/3000/3500mm
Video Outgoing-Inspection
Provided
Core Components
PLC, Motor
After Warranty Service
Video Technical Support
Machinery Test Report
Provided
Transport Package
Plastic Film
Specification
1x40hc
Trademark
LAIEN
Origin
Hebei, China
HS Code
8515809090
Production Capacity
20 Set/Sets Per Month, 80- 100 Times

Product Description

Product Description

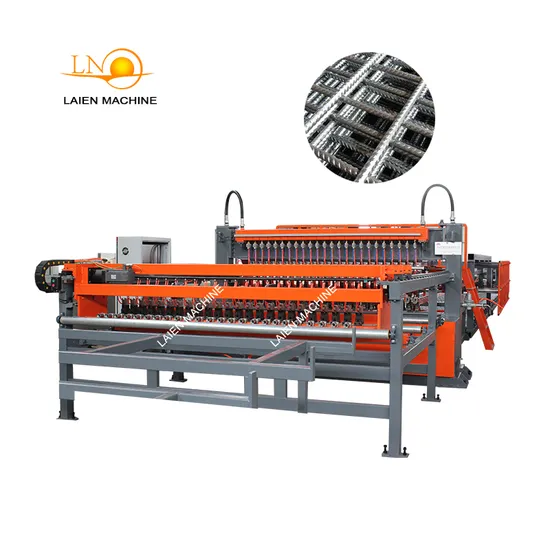

automatic 5-12mm pneumatic wire mesh welding machine

This is our new developed pneumatic welding machine . The (5-12mm) welding speed can be up to maximum 120 times/min.It has advantage of easier machine maintenance, less machine problem, easier to learn and operate, save power and consumption, less welding spark etc.
machine key words :Reinforcing mesh welding machine/steel wire mesh welding machine/steel rebar mesh welding machine/reinforced wire mesh welding machine/conctruction mesh welding machine/grating welding machine/Steel grating welding machine/Metal mesh machine manufaturing

Model GWJ-2500A/3000A
Wire Diameter 5-12 mm
Wire Type pre-cut wire
Mesh Size 100-100/200-200/300-300
Mesh Width Max.2500/Max.3000
Welding Speed 80-100 times/min
Rated Voltage 380V 50Hz
Driving Pneumatic
Contro System PLC(Siemens/Mitsubishi/other)
Kew Words reinforcing concrete wire mesh welding machine

Detailed Photos

♦ line wire feeding rack and feeding device adopts with pneumatic type and servo motor to supply precise actons



♦ pneumatic driven way supply more faster speed in welding and equipped with automatic feeding device which can load 1000kg wires



♦ welding machine equpped with quality aire cylinders and copper blocks to be sure the longer working servie life and cooling by natual water



♦ automatic mesh transfer and stacking device supply Max.6000 mm length stacked mesh sheets
