3-5 Gallon 20L Pet Bottle Fully Automatic Blow Moulding Plastic Water Container Blowing Machine Stretch Blow Molding Plastic Bottle Blowing Machine Price

US$48,000.00 1 Set (MOQ)

Basic Info.

Model NO.
JS600D
Raw Material
PET
Making Method of Parison
Stretch Blow
Automation
Automatic
Computerized
Computerized
Certification
CE
After-sales Service
1year
Number of Cavity
1
Clamping Force
400kn
Mould Opening Stroke
310mm
Stretch Stroke
470mm
Max. Container Volume
10-20L
Max. Neck Size
90mm
Max. Bottle Diameter
290mm
Max. Bottle Height
480mm
Install Power
75kw
Measurement
3.6*1.7*2.5m
Weight
3.7t
Transport Package
by Sea
Specification
SGS, CE
Trademark
JS
Origin
Made in China
HS Code
84773090
Production Capacity
500-600PCS/

Packaging & Delivery

Package Size
3600.00cm * 1700.00cm * 2500.00cm
Package Gross Weight
3700.000kg

Product Description

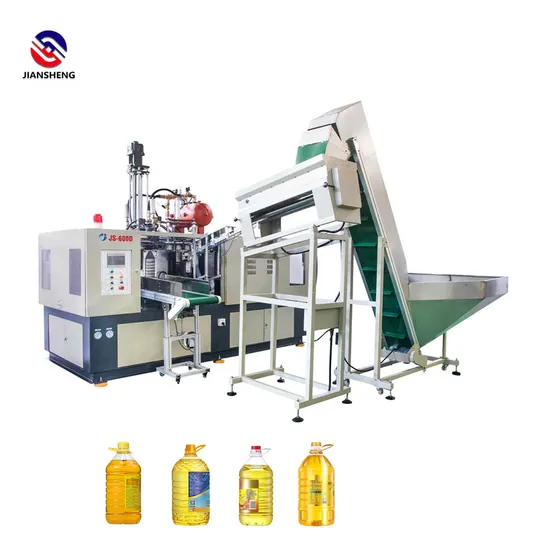

JS600D AUTOMATIC BLOW MOLDING MACNINE , CAN BLOW 10-20L BOTTLE , 1 CAVITY .
JS-600D Bottle making machine With touch screen, Use Festo ( German brand) , SMC (Japan brand ) & Parker ( U.S.A Brand) pneumatic components. PLC use Mitsubishi (Japan brand)
1-can make 10-20L bottle,output 700pcs/h
2-Easy to maintain
3-Infrared lamps ,High safety. high speed with high efficiency.
4-Manual saving, one man is enough for operation the machine.
5-Stable performing with easy maintaining.
6-Imported PLC controlling and man-machine interface computer.
7-Japan Omron inspection sensor.
8-Power saving design that can increase your profits.
9-Segregate type air controlling system.
Technical Reference
Machine Modle JS600 JS600J JS600B JS600C JS600D
PCS/H 600-900 600-900 500-900 350-700 300-720
BOTTLE VOLUME L 0.2-5 0.2-5 0.2-5 1-10 10-20
PREFORM INNER DIAMETER MM 15-120 15-120 63 55 110
MAX.BOTTLE DIAMETER MM 20-180 20-180 20-180 20-210 110
MAX.BOTTLE HEIGHT MM 350 350 350 450 300
CAVITY PC 1 1 1 1 1
MAIN MACHINE SIZE M 2.5*1.5*2 2.5*1.5*2 2.5*1.5*2 2.5*1.5*2 3.6*1.7*2.5
WEIGHT T 2.5 2.5 2.5 2.5 3.8

Internal details of the Machine
