Tsd Series Voltage Stabilizer (TSD-3000VA TSD-5000VA TSD-8000VA TSD-10kVA)

Product Description

Product Description:
Productions Complation:

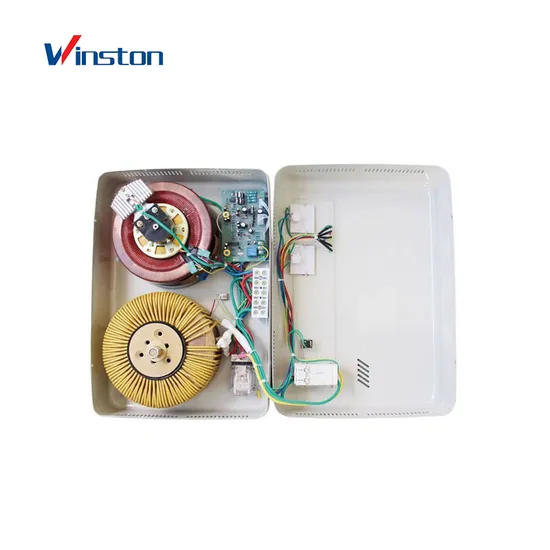

TSD Series servo AC voltage stabilizer mode AC voltage stabilizer is developed on the base of SVC series high accuracy full automatic AC voltage stabilizer.Compared with the original product,this type possesses higher quality and more functions,novel and luxurious apperance,hanging type installation for requiing small area,it forms the control system with linear integrated circuit and logical circuit,and drives the contact type voltage regulator to regulating automatically by controlling the servo motor.It adopts high precision servo voltage stabilizing technology which usually is applied to industry for civilian industry product,to conquer the weakness of instantaneous power failure of traditional switching,and consequently realize high precision and uninterrupted appliances work safely and normally and prolong their service lives effectively.it is really the only ideal protection product of household and imported top grade electrical appliances(power supply of 110V)
Application:
Household appliance,industrial equipment,medical equipment,office equipment,Test equipment,lighting system,communication system,etc
Technique parameter:

Model	TSD-3000VA	TSD-5000VA	TSD-8000VA	TSD-10KVA
Package size(cm)	42×30×19.5	46.3×35.5×23	46.3×35.5×23	50×38.5×25
Current for over-current protection	15A	25A	40A	50A
input voltage	140-260V	140-260V	150-250V
output voltage	220V±3% 110V±4%
Frequency	50-60HZ
Delay time	Long Delay 3-7min,Short Delay 3-7 sec
Voltage regulating speed	>7.5V/sec
Voltage for over voltage Protection	245±5V
Ambient Temperature	-5ºC~+40ºC
Waveform distortion	No additional waveform distortion
Insulating resistance	≥2mΩ

Our Services

1. Prompt reply: Any inquiry or questions would be replied within 24 hours.

2. Quality Product: Manufacture company, each of the products is tested and calibrated.

3. Hospitality: Offer smiling service and your visiting is highly welcomed

4. Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty.

Trade Information

Trade Terms	FOB ,CIF ,CFR,EXW,DDP
Payment terms	T/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions	30% deposit in advance,70% balance before shipping.
Delivery time	3-7working days after deposit,2-4 working days for inventory
Packing	Neutral carton,Wooden case for large size
Shipping	By sea,by air and by express delivery
Payment conditions	30% deposit in advance,70% balance before shipping.
Delivery time	3-7working days after deposit,2-4 working days for inventory
Packing	Neutral carton,Wooden case for large size
Shipping	By sea,by air and by express delivery
