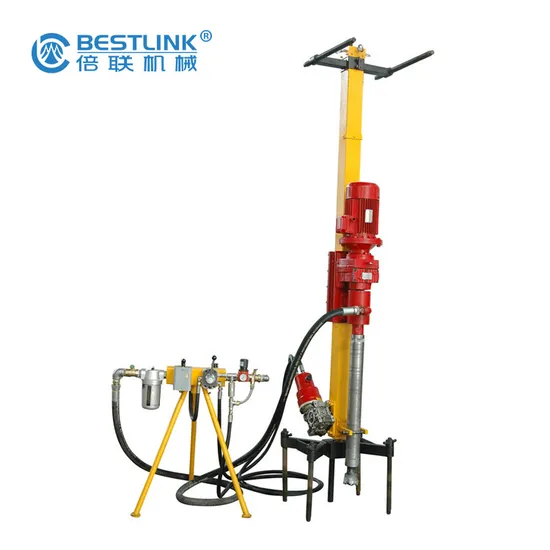

Bestlink Bq90-P Multi-Angle Drilling Pneumatic DTH Driller

Product Description

Bestlink Bq90-P Multi-Angle Drilling Pneumatic DTH Driller
BQ-90P DTH driller is a new model drill machine, we develop it specially used for stone quarry and the drilled hole can be different diameter, depth, multi-orientation & angle.
Now it's the indispensable products for mine quarrying, stone dynamiting and diamond wire passing.

Advantages:
1) Light weight, easy installation and transportation
2) The high quality pneumatic components ensure the low energy and air consumption and high efficiency
3) The good hoisting ability
4) The particular mechanical tube devices for screwing and discharging to reduce the labor intensity
5) The particular design for guiding drilling
Technical Data:

Name	BQ-90P Pneumatic driller
Max. depth of drilling	35-40m
Diameter of drilling	Φ65-90mm
Drilling speed	6~8m/h
Minimum air pressure	0.5-0.7MPa
Total compressed air consumption	7~9m³/min
The hole hammer	CIR65-90
Track travel	1.2m
Advance device	pneumatic motor, reducer, chain
The pneumatic rotation head	pneumatic motor, reducer
Drilling direction	any direction
Adjust height of the down jack	220mm
Pneumatic control panel	remote control, manual change direction
Total weight	250Kg

Detailes of BQ90-P pneumatic DTH driller:

---
