Product Description
Product Description

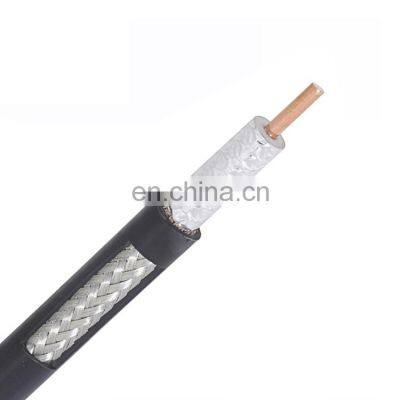

CATV CCTV Cable Manufacturer 50ohm Coaxial Cable RG8 RG8UProduct Description Specifications:INNER CONDUCTORMaterialCopper Clad AluminumDiameter2.74mmINSULATIONMaterialFoamed PEDiameter7.24mm Material2Tinned copper Diameter216*0.16mmPitch42mm,97% Coverage,JACKETMaterialBlack PEDiameter10.29mmCHARACTERISTIC IMPEDANCE50ohms±2Nominal Capacity78(pf/m)Attenuation At 20℃5.25 [ dB/100m@50MHZ]7.00 [ dB/100m@100MHZ]10.50 [ dB/100m@200MHZ]16.60 [ dB/100m@500MHZ]22.40 [ dB/100m@800MHZ]25.30 [ dB/100m@1000MHZ]28.10 [ dB/100m@1200MHZ]31.72 [ dB/100m@1500MHZ]36.05 [ dB/100m@1900MHZ]Company InformationProduction LineOur clientPackaging & ShippingCertificationsFAQQ1:Are you a trading company or manufacture?A1:YUXUN cable is a professional manufacturer since 1996, so we can provide perfect solution on cables and can control the quality from the first procedure to the last. Q2:What is your delivery time?A2:Normally,our delivery time is 15-20days after get your deposit. . Q3:What is your MOQ?A3:Usally,the MOQ of our general coaxial cable product is 15-20KM,but every inquiry will be considered individually. Q4:What is your general payment term?A4: Normally, our payment term is 30% deposit by TT when order confirmed, and 70% balanced payment by TT or LC at sight before delivery. Q5: Can you produce the specfic cable strictly according to clients' requirement?A5: Yes, we have professional technical team, so we can do ODM for customers. Q6: Where you are located?A6: We located in the city of ZHUHAI, quite near to HK/Macao/Shenzhen/Guangzhou. If you intersting in our cables, pls send the enquiry now!!!Free sample will be deliveried to your address soon!!Contact us
>>
