The water can be heat up to 90ºC, high temperature output can reduce the volume of the storage tank and suitable for some specific usage (disinfection, cleaning) Suitable for low ambient. Even in -43ºC, it can efficiently offer heat Max COP is 5.5, our multi function model can reach max COP 7 (provide free cooling when producing heat) Inverter control to offer various power accordingly to real requirement, save energy Modules design, can reach higher Power by combined installation 6 layers of pressure protection Intelligent inverter control , can save 50% energy during defrosting Smart wireless control, also RS485/Modbus central control Programmable digital interface with touch keys Monobloc design, no need extra work for high pressure refrigerant connection

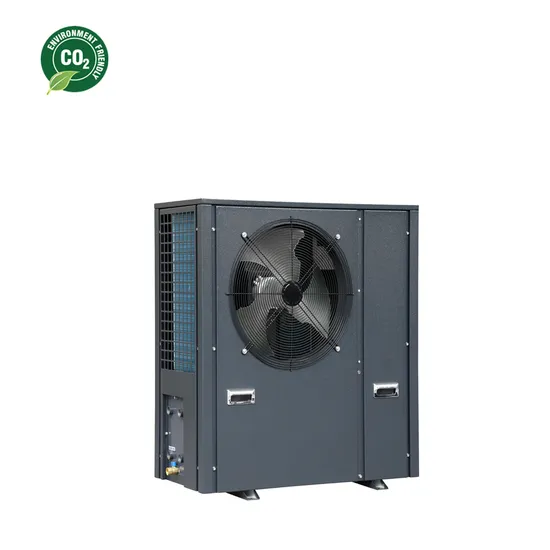

| INVERTER CO2(R744) heat pump specification |
| | LYD | 7ZW(40L-260L) | 8ZW | 14ZW | 25ZW | 40ZW | 50ZW | 75ZW | 120ZW |
| Standard temperature condition | Heating Capacity | kW | 6.8 | 7.8 | 13.6 | 24 | 40 | 51 | 75.5 | 125.4 |
| Hot water capacity | L/H | 129.9 | 149 | 259.8 | 458 | 764 | 974 | 1442 | 2396 |
| Heating power input | kW | 1.51 | 1.7 | 3 | 5.3 | 9 | 11.3 | 16.7 | 26.6 |
| COP | W/W | 4.5 | 4.58 | 4.6 | 4.5 | 4.4 | 4.5 | 4.5 | 4.7 |
| Low temperature condition | Heating Capacity | kW | 5.8 | 7 | 12.1 | 20 | 35 | 45.6 | 64 | 95 |
| Hot water capacity | L/H | 97.7 | 118 | 203.9 | 337 | 590 | 768 | 1079 | 1602 |
| Heating power input | kW | 1.47 | 1.7 | 3 | 5 | 9.4 | 12 | 16.8 | 24.3 |
| COP | W/W | 3.9 | 4.1 | 4.1 | 4 | 3.7 | 3.8 | 3.8 | 3.9 |
| Ultra-Low temperature condition | Heating Capacity | kW | 5.3 | 6.5 | 11.2 | 14 | 28 | 35.7 | 49.1 | 78 |
| Hot water capacity | L/H | 89.3 | 109 | 188.8 | 236 | 472 | 601 | 826 | 1315 |
| Heating power input | kW | 1.46 | 1.71 | 2.9 | 4.8 | 10.1 | 12.3 | 16.8 | 26 |
| COP | W/W | 3.62 | 3.8 | 3.9 | 2.9 | 2.8 | 2.9 | 2.9 | 3 |
| Power supply | V/Ph/Hz | | | | | | | | | |
| Heating type | | Direct |
| Rated output water temperature | ºC | 45 |
| Maximum output water temperature | ºC | 95 |
| Work ambient temperature | ºC | (-)25-43 |
| Compressor | Type | Panasonic | Torin(Italy) |
| Defrosting type | | | Bypass |
| Water connection pipe size | mm | DN15 | DN20 | DN25 |
| Water side heat exchanger | Type | Tube-Tube type |
| Air side heat exchanger | Type | High efficiency copper tube(Interior Screw) nested in aluminium fin |
| Refrigerant | Type | R744/CO2 |
| Dimensions | Length | mm | 520 | 910 | 910 | 1280 | 1803 | 1803 | 2046 | 2468 |
| Width | mm | 520 | 430 | 430 | 800 | 830 | 830 | 1106 | 1368 |
| Height | mm | 1700 | 1000 | 1000 | 1500 | 2100 | 2100 | 2300 | 2413 |
| Unit noise level | | dB(A) | 40 | 42 | 45 | 46 | 49 | 50 | 54 | 65 |
| Net weight | | kg | 132 | 130 | 181 | 380 | 525 | 650 | 980 | 1350 |
| Inverter | | DC | AC |
| Note: | | | | | | | | | | |
| 1.Standard temperature condition:Ambient temperature 20ºC,Water temperature: inlet 15ºC,outlet 60ºC | | | | |
| 2.Low temperature condition:Ambient temperature 7ºC,Water temperature: inlet 9ºC,outlet 60ºC | | | | | |
| 3.Ultra-Low temperature condition: Ambient temperature -7ºC,Water temperature: inlet 9ºC,outlet 60ºC | | | | |
