HDPE PP Making Multi Layers Blow Molding/Moulding Equipment

Product Description

PXB70APT

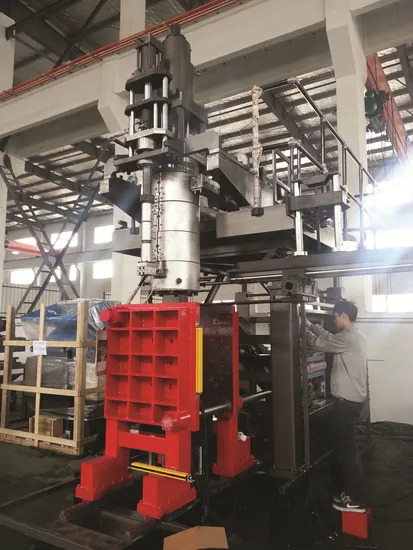

12L - 20L Multi-Layer Blow Molding Machine
- Fixed station & Accumulator head
- Perfect usage for special package jerry can, auto parts, high pressure sprayer, etc.
- Fast start-up speed, energy saving.
- Optional internal thread rotary bottom blow system.
- Multi-layers and Transparent line
Configuration List

PLC	MITSUBISHI	Japan
Touch Screen	HITECH	Taiwan
Inverter	MITSUBISHI	Japan
Power Supply	MEAN WELL	Taiwan
Relay	OMRON	Japan
Hydraulic Valves	YUKEN	Japan
Hydraulic Pump	SETTIMA	Japan
Contactors	LS(LG)	Korea
Solid relay	FOTEK	Japan
Breaker	LS(LG)	Korea
Temperature Control Module	MITSUBISHI	Japan
Oil Sealing	DZ	Taiwan
Oil Tube	LIEBAO	Taiwan
Transducer	GEFRAN	Italy
Proximity Switch	SONON	China
Motor	DMASS	German
Air valve	FESTO	German
Parison control	MOOG	Japan

Machine model		PXB70A-1PT
Material		PE,PP,ABS...
Max container capacity	L	18
Output(dry cycle)	pc/hr	700
Machine dimension(L×W×H)	M	4.3×1.6×3.5
Machine weight	T	8.5
Clamping Unit
Clamping force	kn	125
Mold platen size(W×H)	mm	680×600
Platen opening stroke	mm	300-750
Platen moving stroke	mm	450
Max mold size(W×H)	mm	450×700
Mold thickness	mm	310-370
Power
Servo oil pump motor power	KW	13
Servo pump displacement	L/MIN	80
Blow pressure	MPA	0.8
Air consumption	M3/MIN	0.7
Cooling water pressure	mpa	0.3
Water consumption	L/min	60
Average energy consumption	KW	20-25
Extruder unit
Screw diameter(outer layer/inner layer)	mm	50/50
Screw L/D ratio	L/D	24
HDPE Melting capacit for HDPE	kg/hr	80
Number of heating zone	zone	3×2
Screw heating power	kw	14.2×2
Screw fan power	KW	0.5
Extruder motor power	kw	11×2
Die head
Number of heating zone for single die head	zone	4
Heating power for single die head	kw	21.3
Max die-pin diameter	mm	200
Accumulator capacity	L	3
(HDPE) Accumulator weight(HDPE)	KG	2.25

Delivery Time:
- No later than 60 days after receipt of the deposit
Training:
- We provide training service for two or three operating men for free (but the cost for trainer's board and lodging is not included).
Installation:
- The supplier will send one specialist to test run the machine until it is running in normal state.
Guarantee:
- Our guarantee is valid for a period of 12 months. If the malfunction caused of the machine's self quality, we will troubleshoot it for free.
Auxiliary Equipments:
- Auxiliary equipments for production line are available and optional, please kindly ask for quotation.

---
